1L Mini Spray Dryer

We have 1-20L Spray Dryer machine can be choose.And can be customized according to your different requirements. If you have any need please contact us:

Email:Laura@xiaofanequip.com

Whatsapp:008615936214136

Wechat:BEIFAN-Laura

Phone:008615936214136

Product description

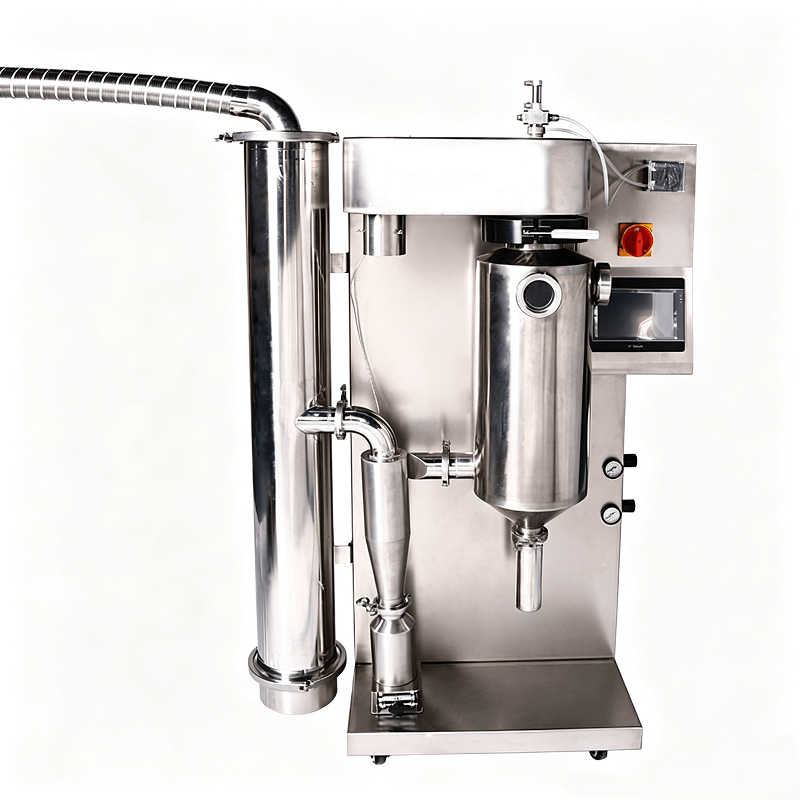

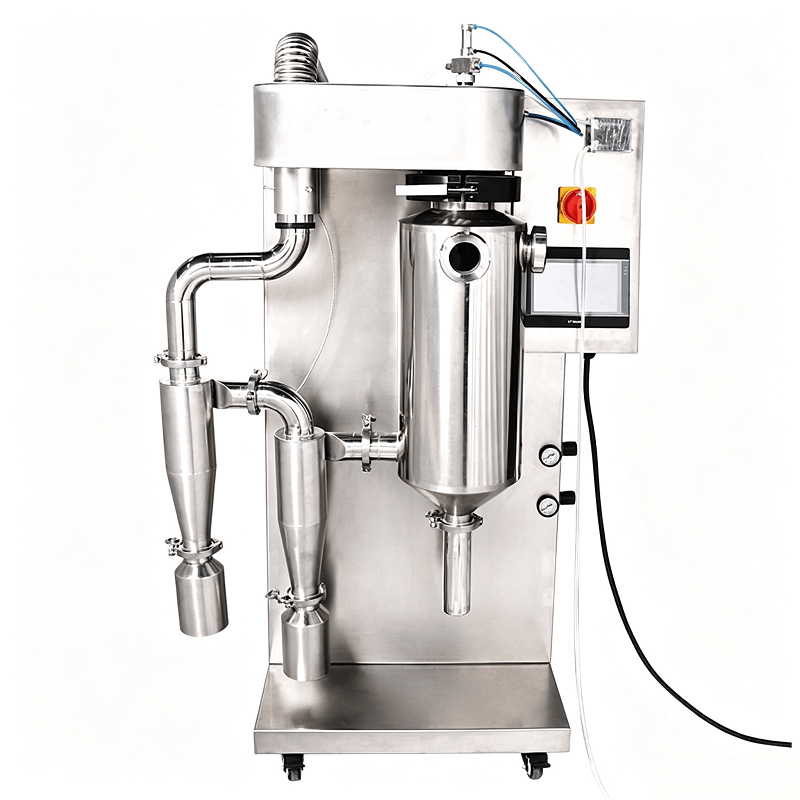

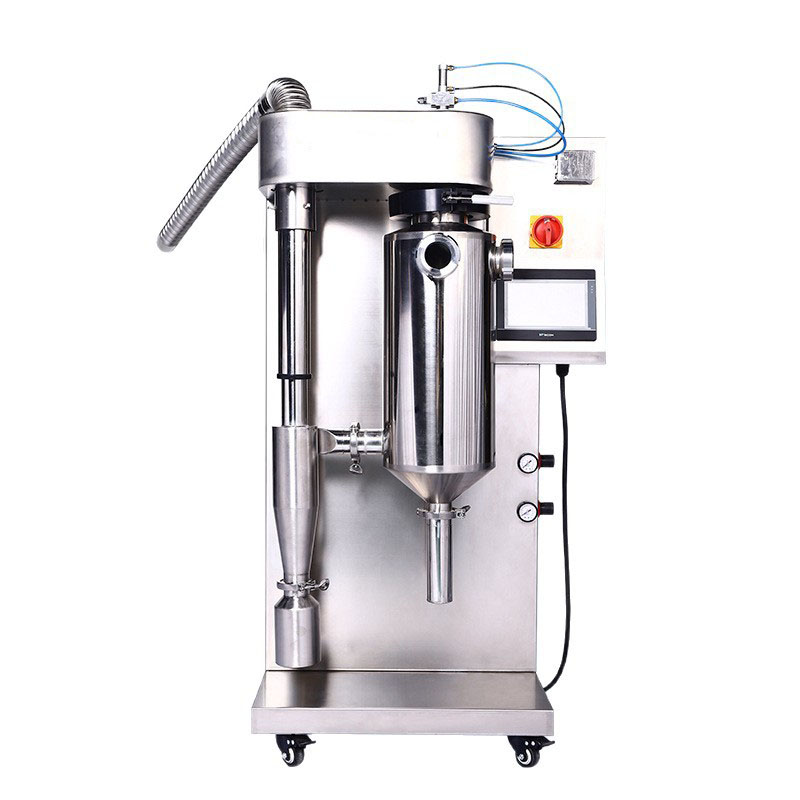

SP-1500 lab scale spray dryer. It assembles many of new design, for example, small shape for free moving, combining air compressor and electrical heater inside the cabinet, glass spray and cyclone separator for inspecting. All the data and function are controlled by PLC, English language.

Features

1. Special for lab research, Min 20-30ml liquid to finish one test.

2.All borosilicate glass for easy visual monitoring of process status.

3.Spray chamber, cyclone separator, receiving tank are all made of Borosilicate glass which can resist strong acid/alkali, high temperature. It can work in a no-pollution and stable environment.

4.Easy to clean and very simple to assemble and break down.

5.The air compressor is no oil and don't pollute compress air. The sound is low than 50db and following the GMP understands.

6.The unit is self contained and supplied complete and ready for immediate operation.

7.Using screen touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency.

8.Product feeding with RS2559605 rotary pump, capacity is adjustable

Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled.

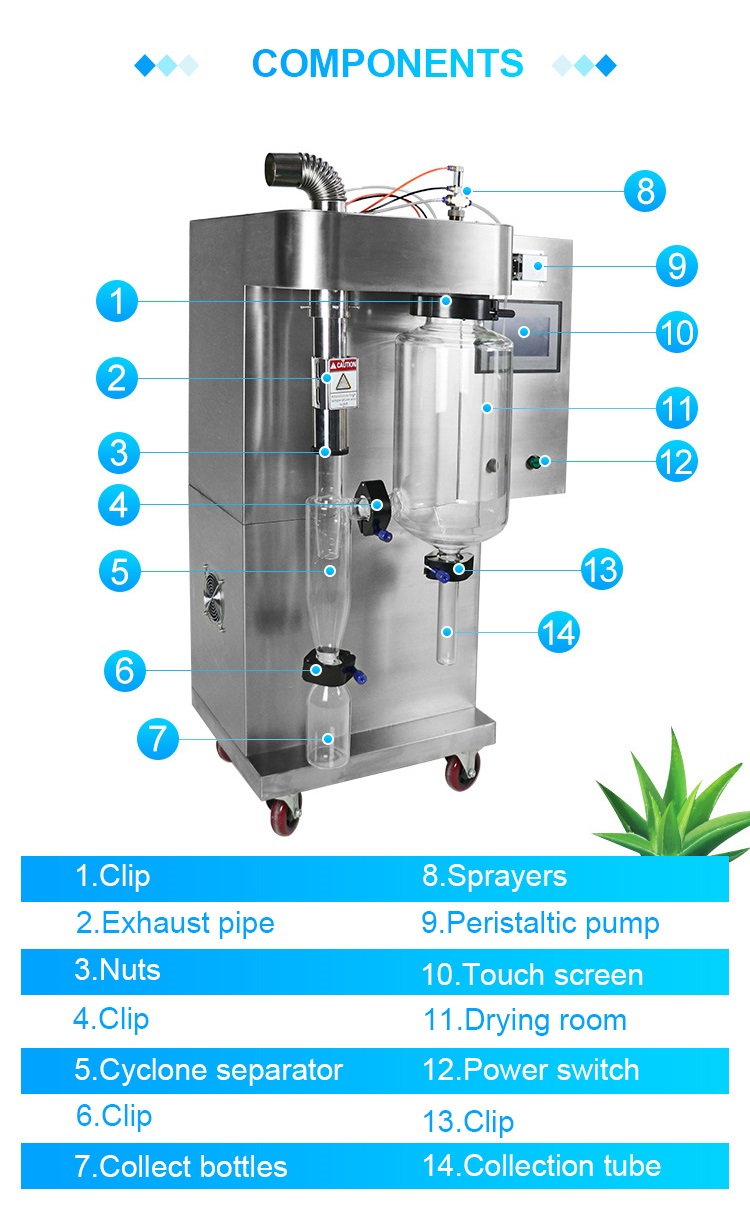

Details Image

Specification
