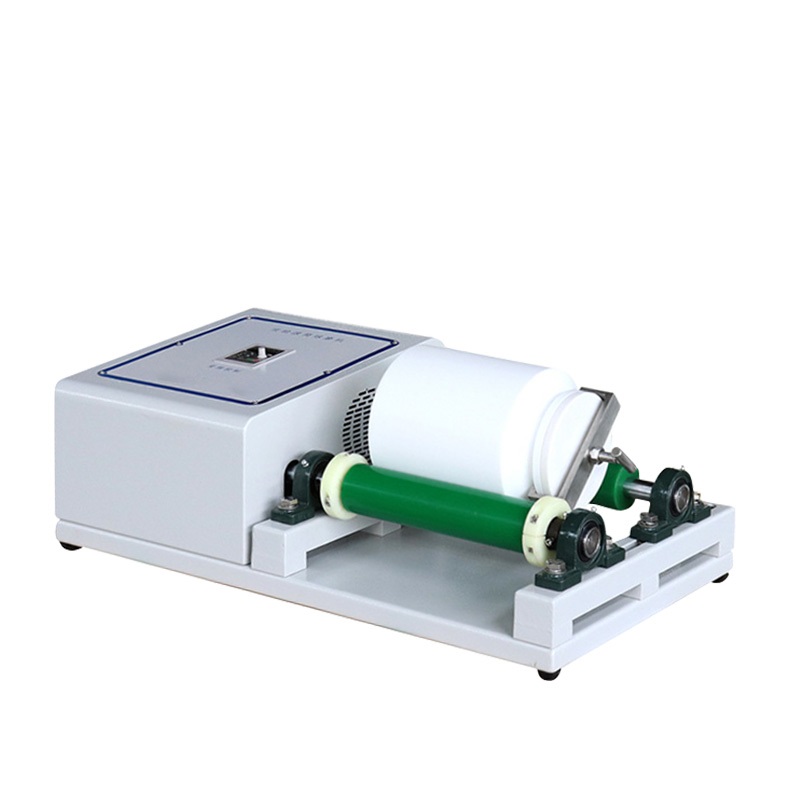

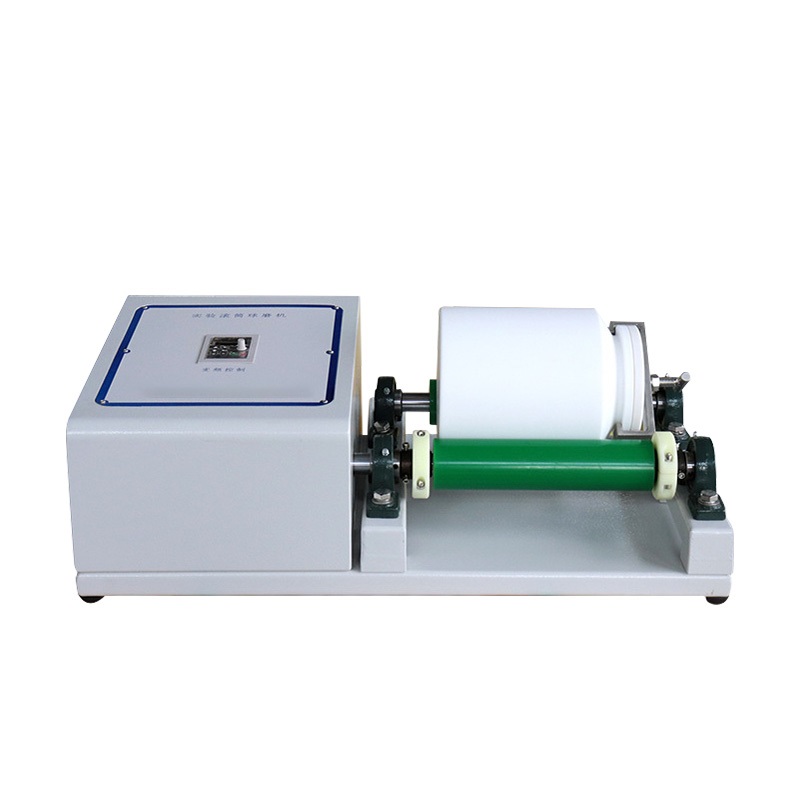

1-5L Lab Single station Roll Ball Mill
1-5L Lab Single station Roll Ball Mill
The 1-5L Lab Single station Roll Ball Mill can be customized according to your different requirements. If you have any need please contact us:
Email:shuke@xiaofanequip.com
Whatsapp:008615936214136
Wechat:15936214136
Phone:008615936214136
Description
Lab roll mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
![]() | ![]() | ![]() |
Application

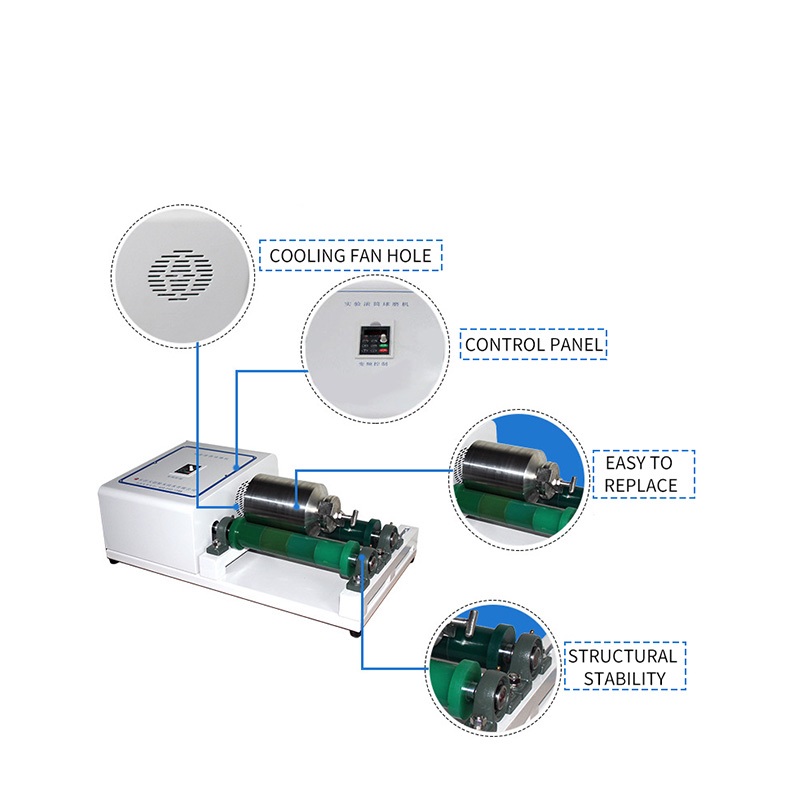

Features
1. Compact structure, easy operation
2. High efficiency and uniform granularity

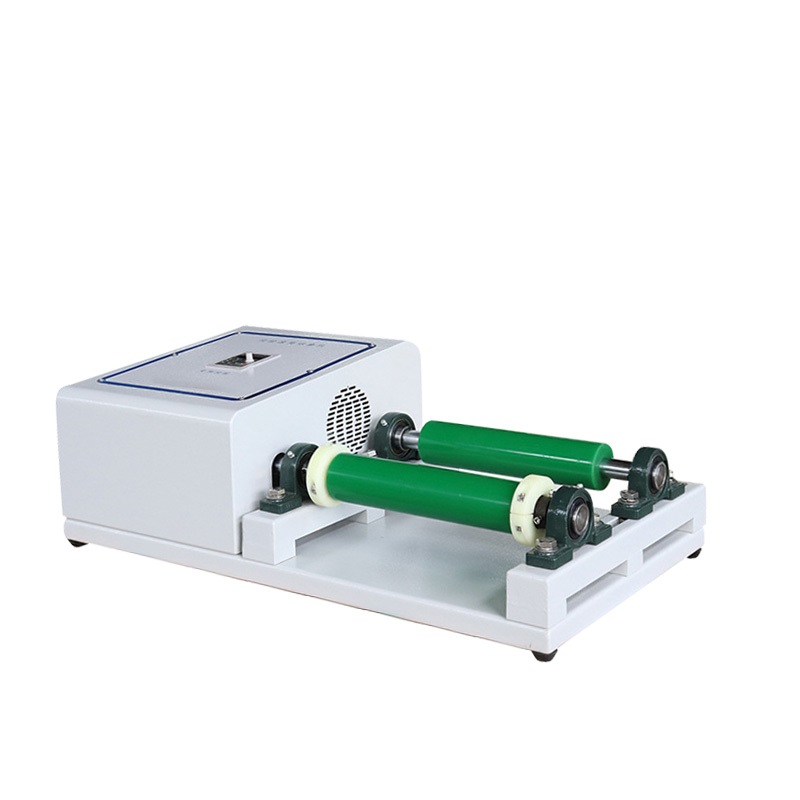

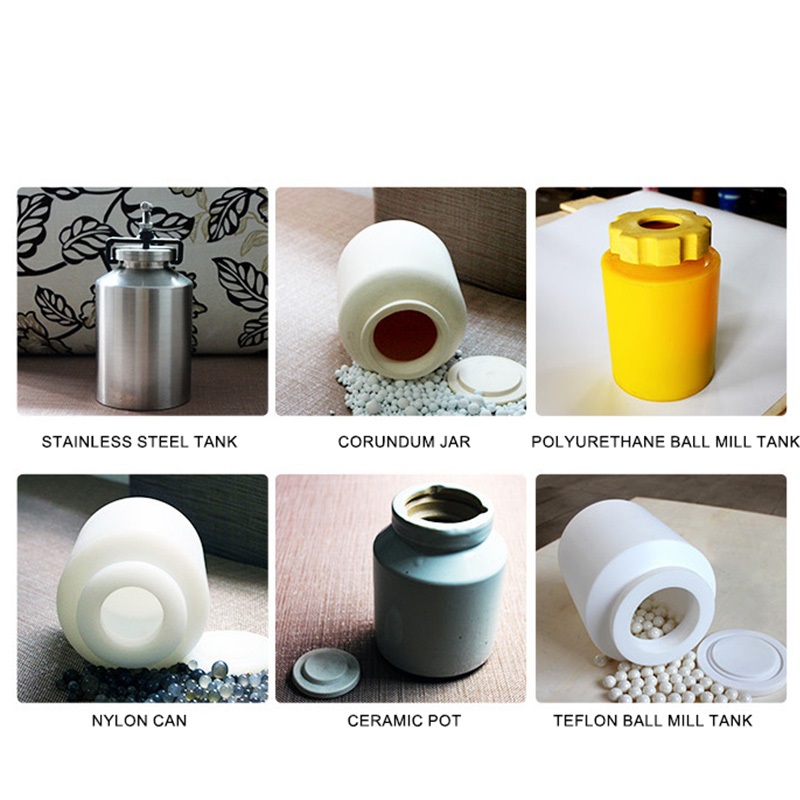

3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.
4. It is convenient to change pots and suitable for both wet and dry grinding.
Specification
Category | Model No. | Power Supply | Rotate Speed | Max Load Per Jar | Dimensions & Net Weight |
1 Work Position | GQM-1-5 | 220V-50Hz or 60Hz/0.37kw | 60-570 rpm | 35KGS | 730*415*260mm 32KGS |
GQM-1-15 | 220V-50Hz or 60Hz/0.75kw | 60-570 rpm | 80KGS | 845*435*270mm 43KGS |
