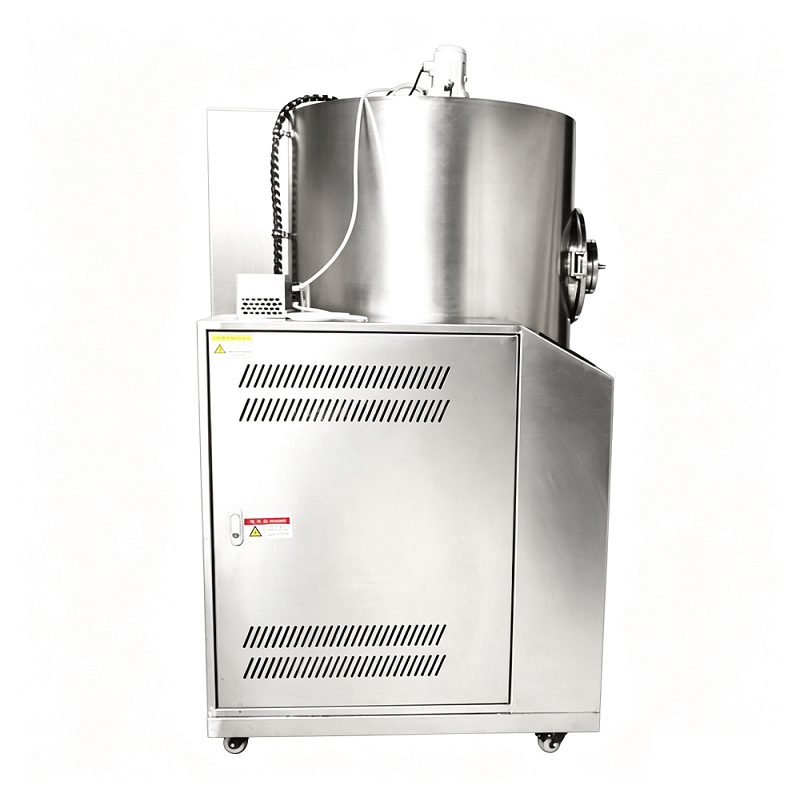

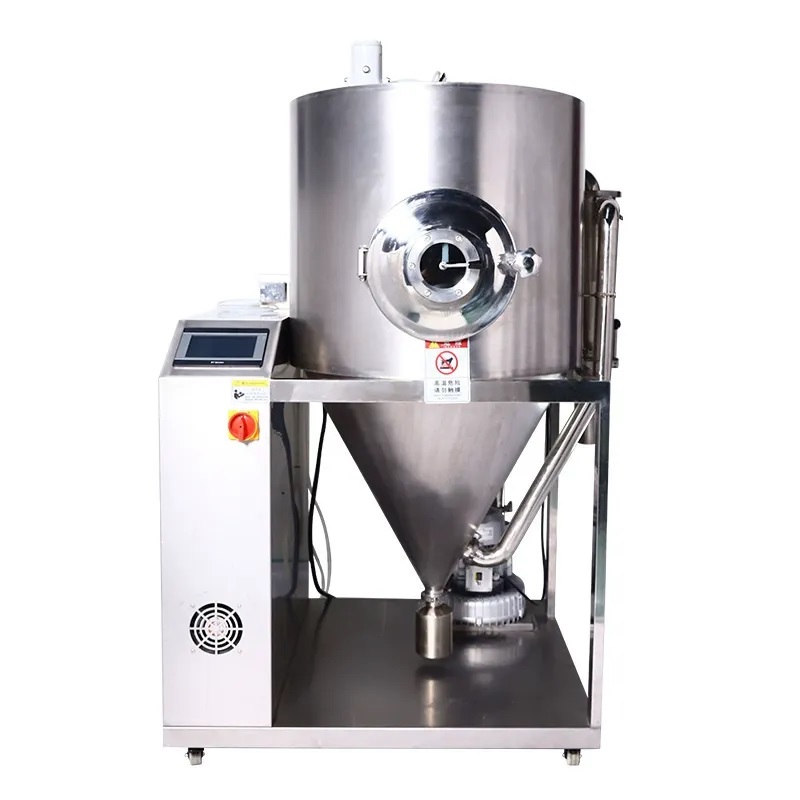

3L Milk Spray Dryer Machine(Two-Fluid Nozzles)

We have 1-20L Spray Dryer machine can be choose.And can be customized according to your different requirements. If you have any need please contact us:

Email:Laura@xiaofanequip.com

Whatsapp:008615936214136

Wechat:BEIFAN-Laura

Phone:008615936214136

Product description

Air passes through a filter and heater before entering the hot air distributor at the top of the drying chamber, where it flows into the chamber evenly in a spiral pattern. The feed liquid passes through a filter and is pumped to a centrifugal atomizer at the top of the chamber, where it is sprayed into extremely fine droplets; these droplets make contact with the hot air over a vast surface area, causing rapid moisture evaporation and drying into granular product within a very short time. The product is collected at the bottom of the tower and in a cyclone separator, while the exhaust air is discharged outdoors by a fan.

11

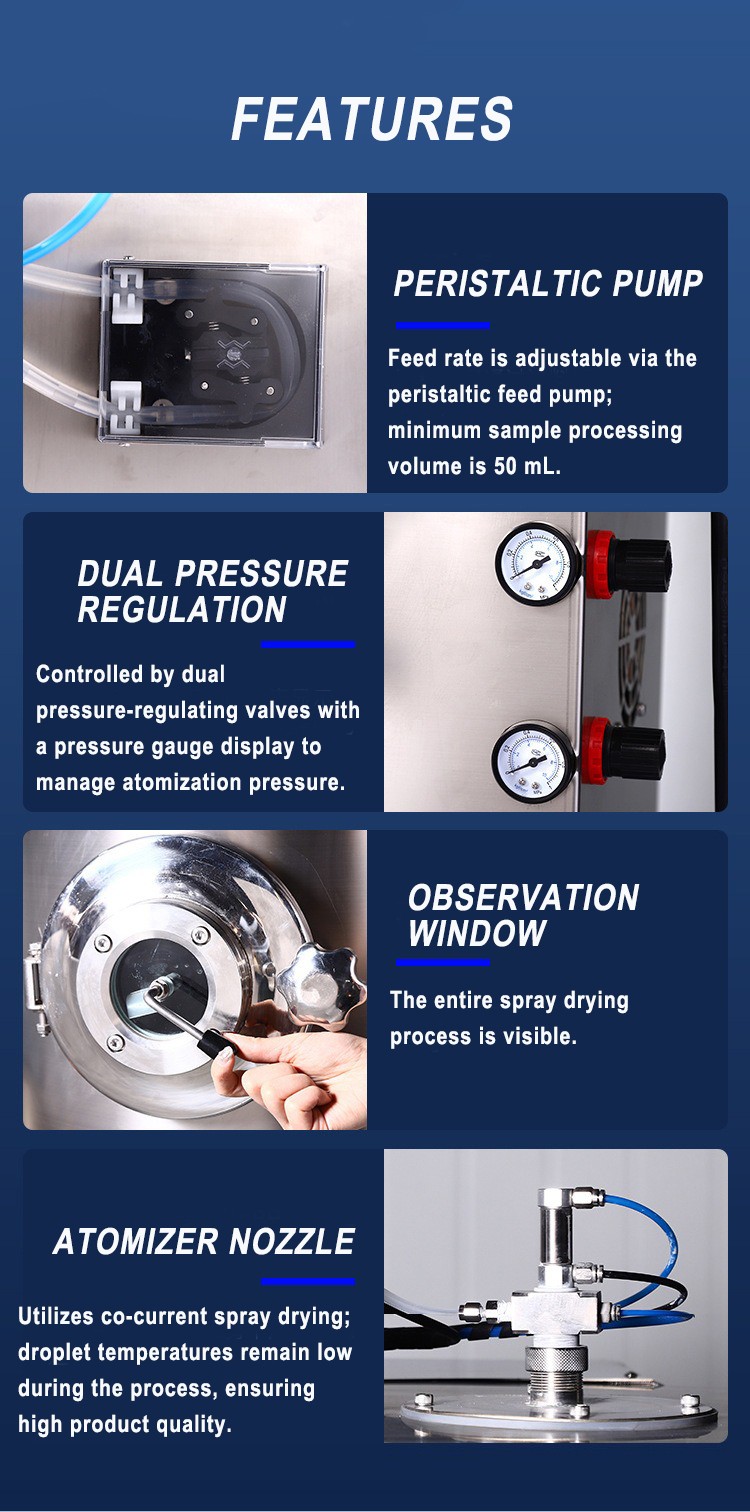

Features

11

1. Rapid drying speed: Centrifugal atomization of the liquid feed vastly increases its surface area. In a high-temperature airflow, 95–98% of the moisture evaporates almost instantly, completing the drying process in just a few seconds.

2. Suitable for heat-sensitive materials: Because the droplets flow concurrently with the hot air, the material does not overheat during moisture evaporation, even though the air temperature is high.

4. The product exhibits excellent dispersibility, flowability, and solubility. Since drying occurs instantaneously, the product retains a uniform, fine granular structure.

5. Simplified production process and convenient operation: Solutions with moisture contents of 40–60% (up to 90% for special materials) can be dried directly into powder in a single step, eliminating the need for subsequent pulverization or screening; this reduces production stages and enhances product purity. Key product characteristics—such as particle size, bulk density, and moisture content—can be adjusted within specific ranges by modifying operating conditions, making control and management highly convenient.

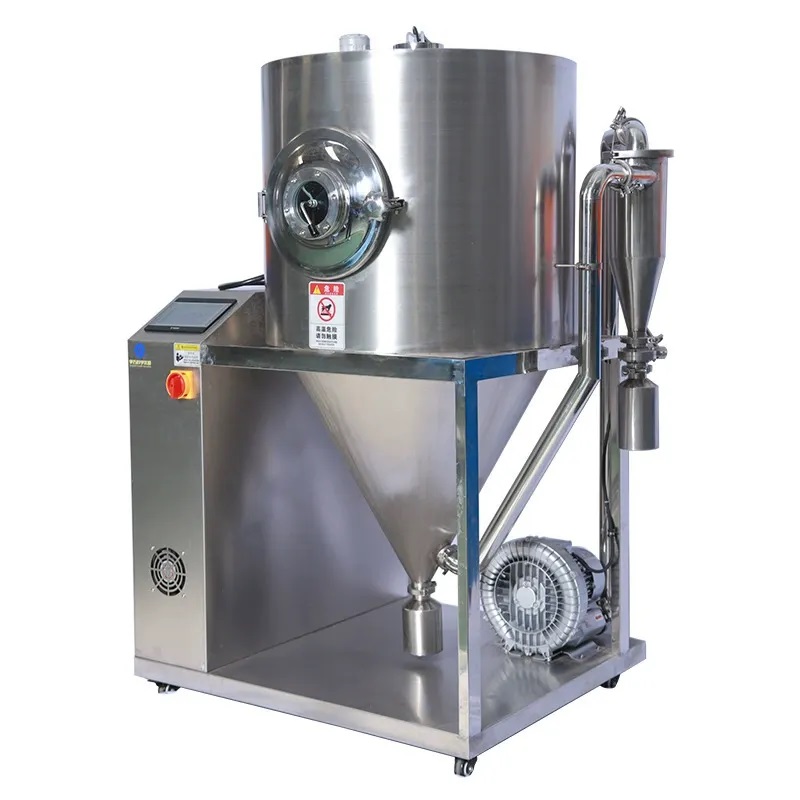

Details Image

Specification

Configuration of Spray Dryer:

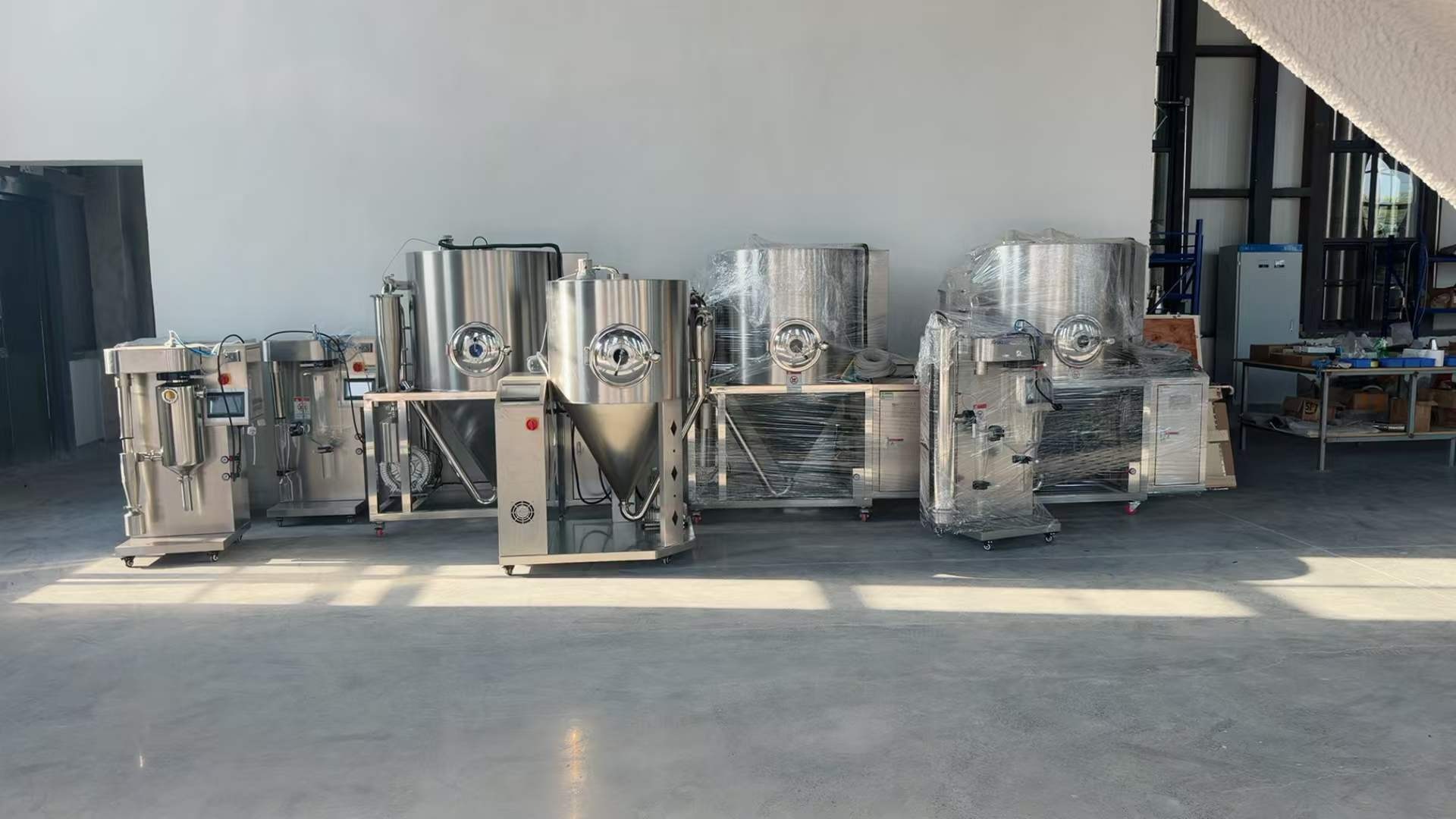

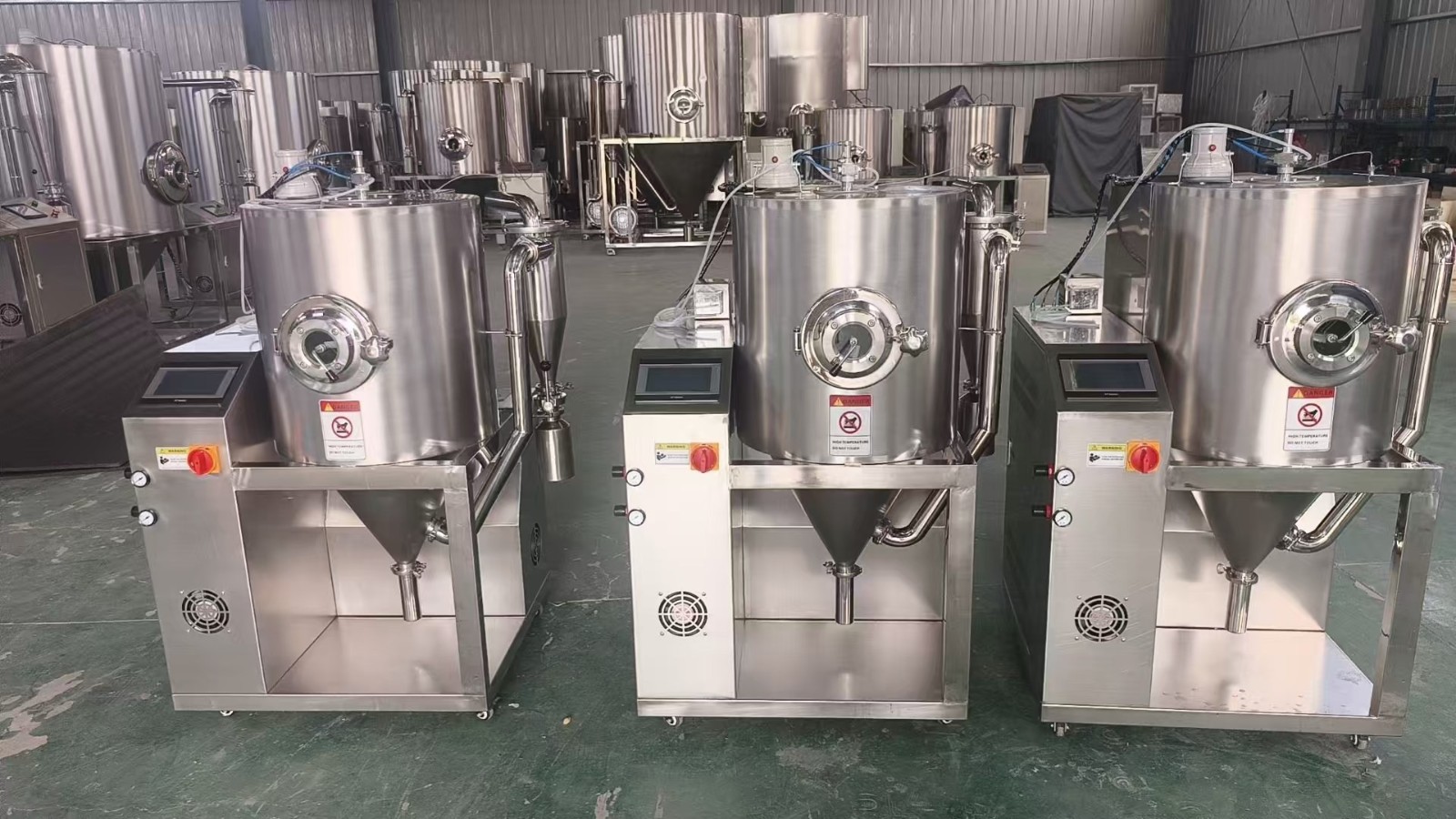

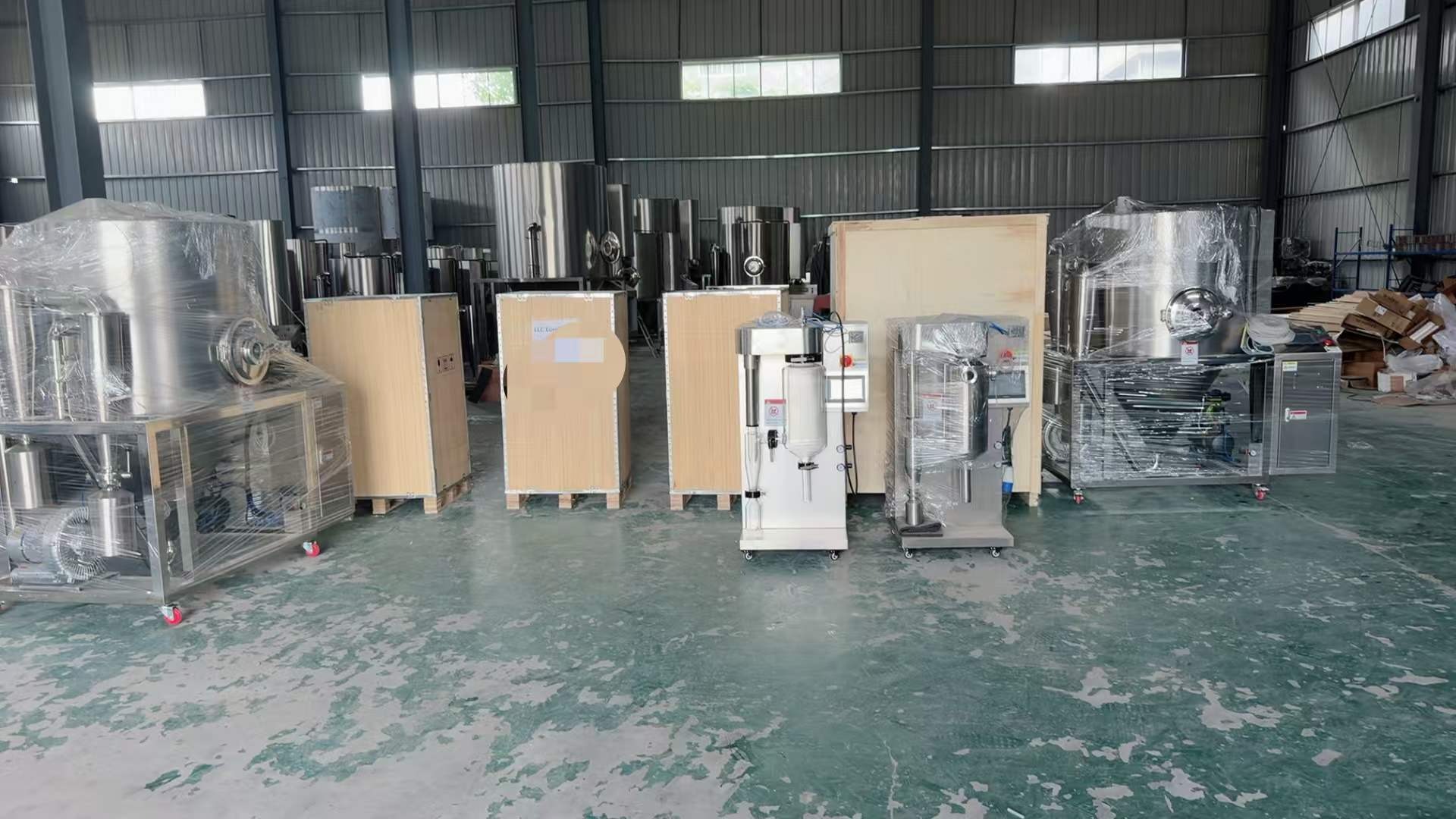

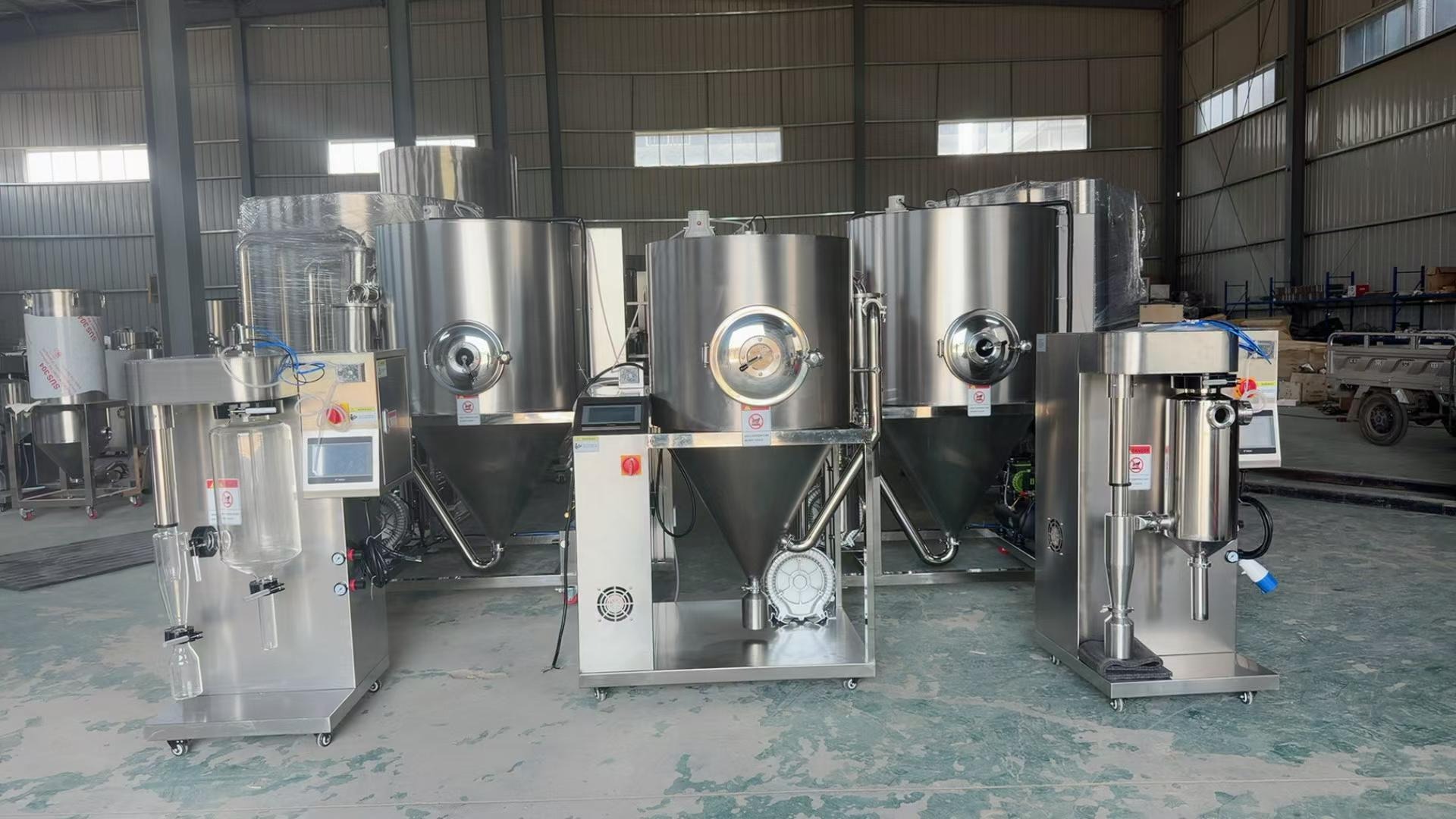

Factory Show
