1L Digital Mini Rotary Vacuum Evaporator

We have 1-200L Glass rotary evaporator,Stainless steel rotary evaporator can be choose.And can be customized according to your different requirements. If you have any need please contact us:

Email:Laura@xiaofanequip.com

Whatsapp:008615936214020

Wechat:BEIFAN-Laura

Phone:008615936214020

Description

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration.

Working principle

Through electronic control, the flask is rotated at the most appropriate constant speed to increase the evaporation area.

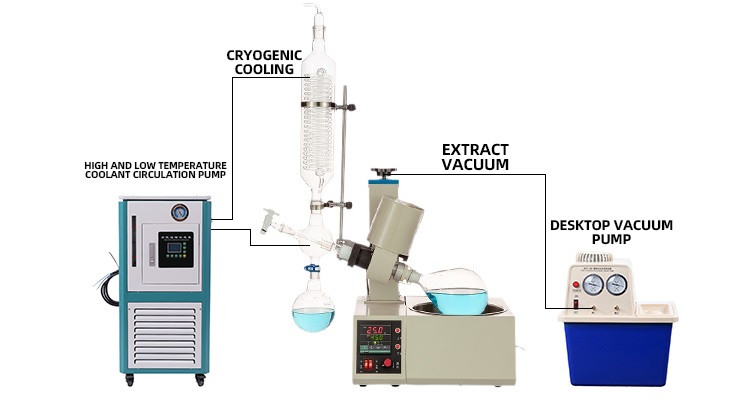

Connect a vacuum pump to put the evaporation flask in a negative pressure state, place the evaporation flask in a water bath and heat it at a constant temperature while rotating it. The solution in the flask is heated and diffused in the rotating flask under negative pressure.

Application

Features

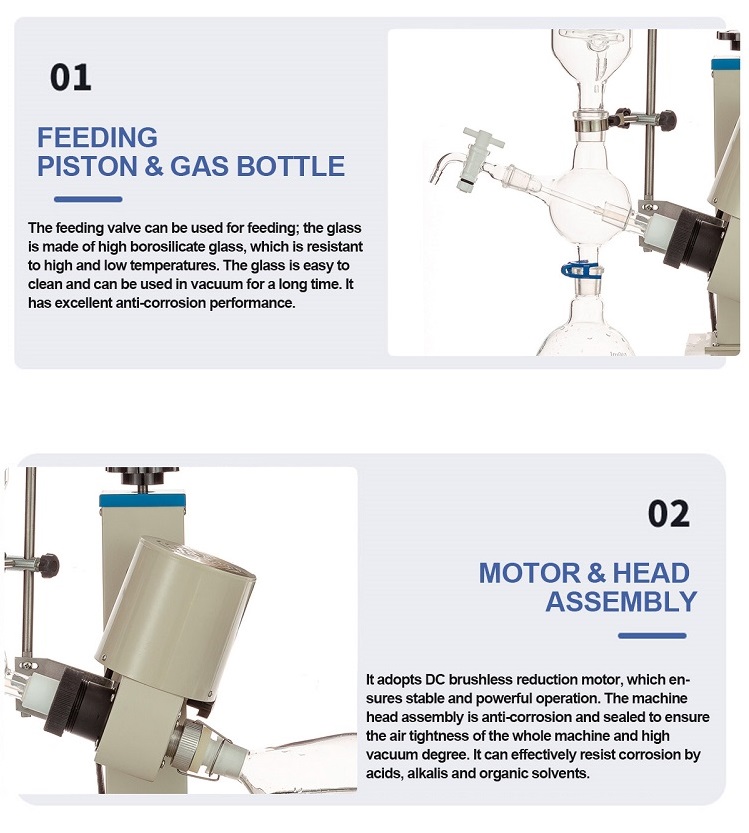

Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.

1.Quick and easy lifting mechanism.

2.Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.

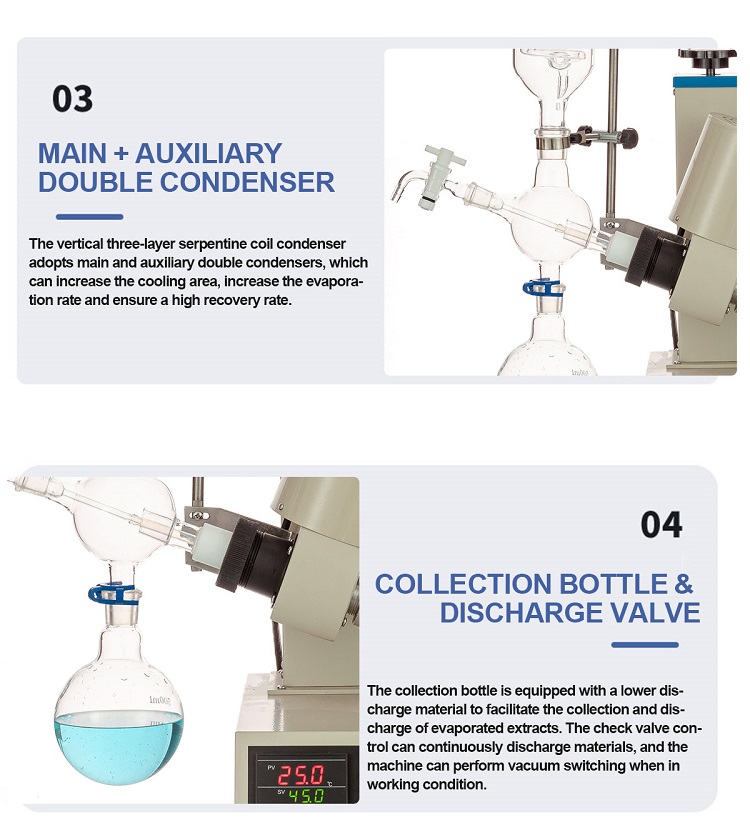

3.Vertical condensation system of high rate of evaporation.

4.Vacuum sealing way.

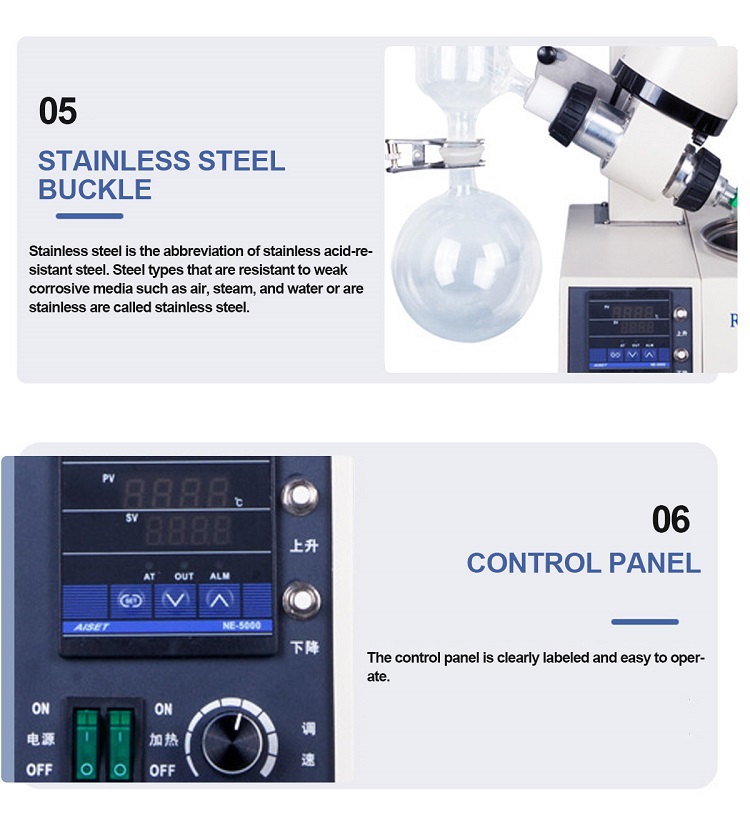

5.Automatic control temperature digital display.

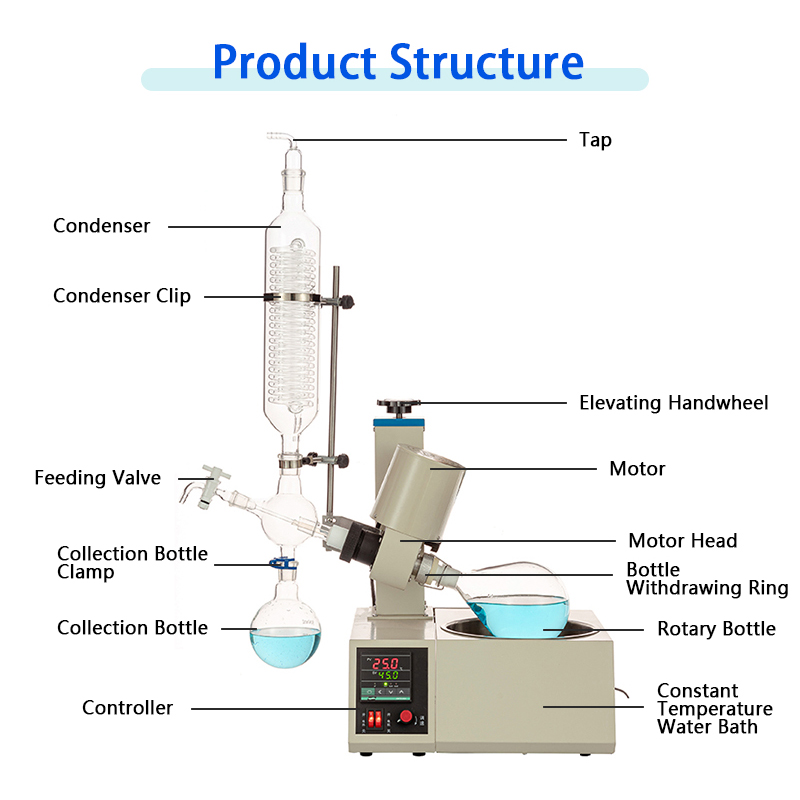

Details Image

Specification
