80L Jacketed Glass Reactor
80L Jacketed Glass Reactor
We have 1-200L single layer,double layer,stainless steel,steel reactor can be choose.And can be customized according to your different requirements. If you have any need please contact us:
Email:Laura@xiaofanequip.com
Whatsapp:008615936214136
Wechat:BEIFAN-Laura
Phone:008615936214136

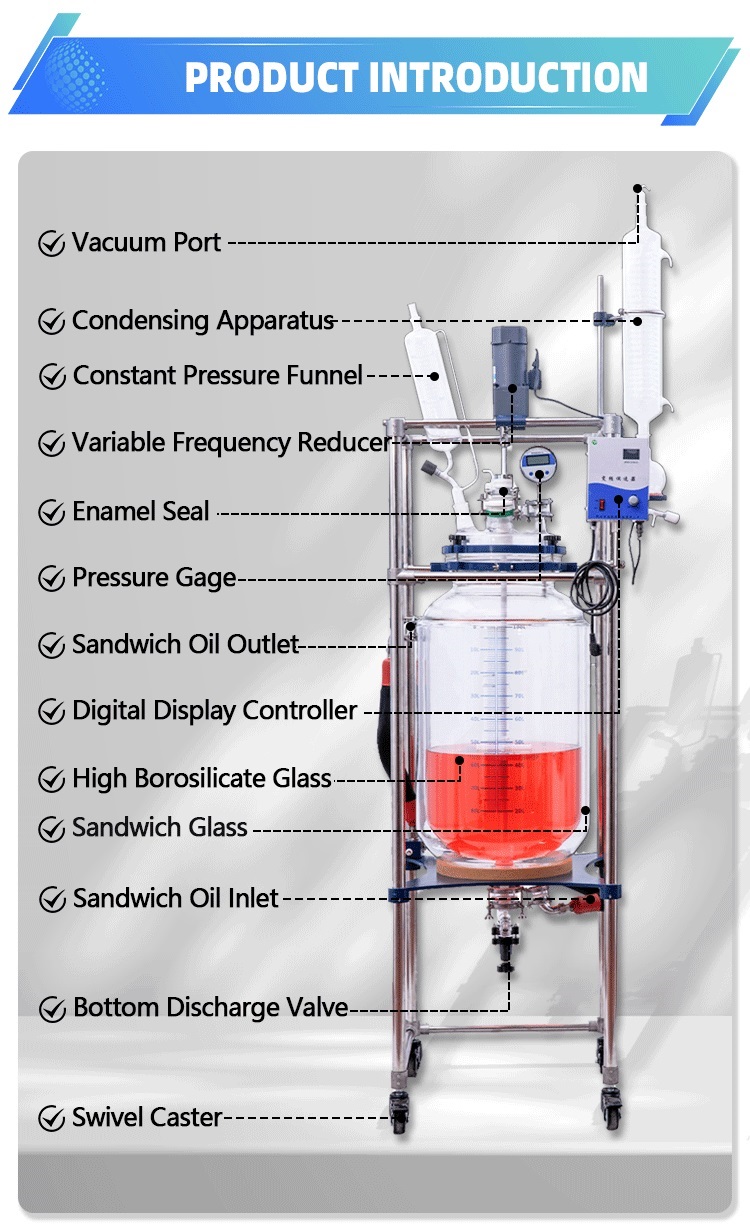

Product Description
High quality borosilicate 3.3 glass has good chemical and physical properties.
Low-speed booster motor; High torque; No spark; Frequency conversion speed regulation, smooth operation.
Polytetrafluoroethylene rotary seal assembly; Patented products; High vacuum, long service life.
Choose our company's cold and heat circulation device, we are equipped with standard fittings and suitable connecting pipes.

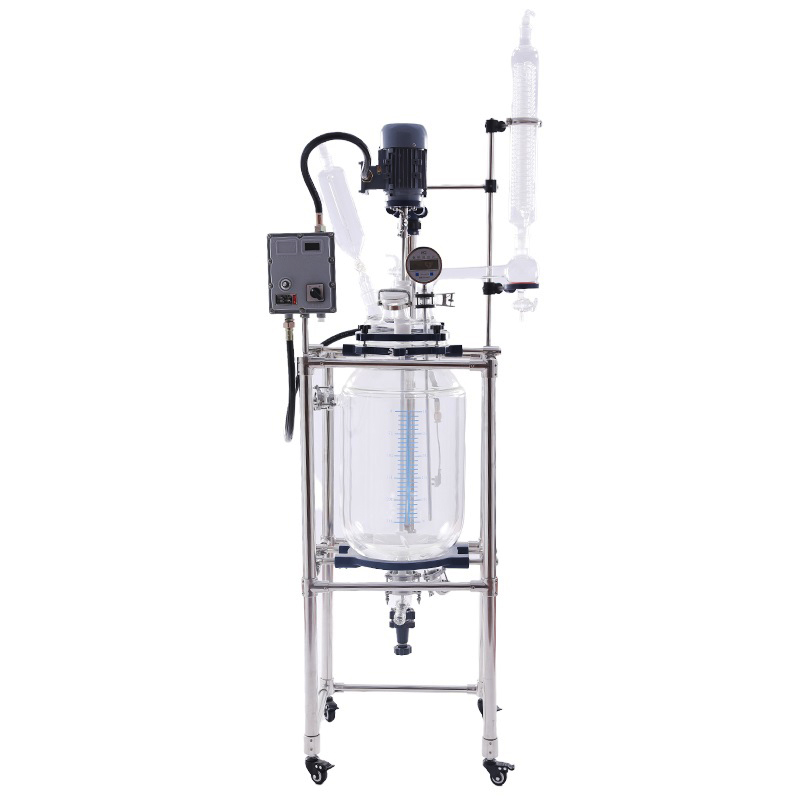

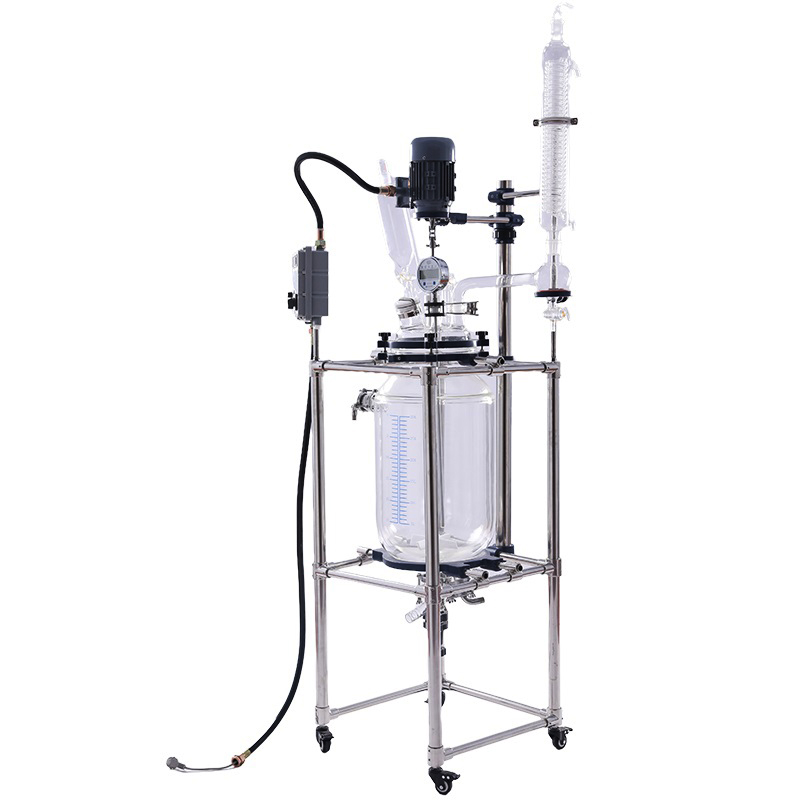

Product Display
 |  |  |
Features
1.Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects the circulation fluid temperature and provides a better control.
2.Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
3.All glassware is hand-made from borosilicate 3.3 glass that is heat/cold/corrosion-resistant.
4.Adjustable stirring rate provides great torque or high speed.
5.Patented PTFE stirring rod bearing for reliable and quiet operation.
6.Wide range of temperature operations, from -60°C to 200°C.
Specification
| Model | BF-80LS |
| Glass Material | GG-17 |
| Frame Material | 304 Stainless steel |
| Fittings Material | 304 Stainless steel |
| Moves | Brake Caster |
| Reaction bottle capacity | 80L |
| Jacketed Capacity | 16L |
| Flanged out of the oil circulation port | Low feed high outlet |
| Reaction bottle cover | Six port |
| Discharger port distance to ground | 450mm |
| Temp. range | -80-250℃ |
| Vacuum degreee | 0.098Mpa |
| Stirring speed | 0-450rpm |
| Stirring diameter | 15mm |
| Stirring power | 250W1/3 |
| Coltage(V/Hz) | 220V/50Hz |
| Dimension(mm) | 610*610*2400 |
| Packing size(mm) | 1900*700*870 |
| Packign weight（KG） | 125 |
| Speed mode | electronic stepless |
| Motor | Whole cooper wire, ratio 3: 1 |
| Speed display | Digital display |
| Temp. display | PT100 sensor, digital display |
| Sealing method | Tetrafluoroethylene seal assembly, ¢ 60 flange stirring port |
| Condenser | Vertical 120*640mm，40#port |
| Reflux(distillation) apparatus | Reflux elbow with discharger port, milling mouth 50 # |
| Dropping device | 2L,Constant pressure funnel,40# port |
| Pressure relief device | 34# Pressure reducing valve |
| Temperature tube | 24# |
| Solid addition | ￠80 Flang with tetrafluoroethylene cover |
| Discharge mode | Oblique discharge with glass discharger value，￠80 Flang |
| Vacuum Display | Vacuum Universal joints |
| Stirring Connection | Universal joints connection |
| Stir bar | Anchor stainless steel rods, outsourcing tetrafluoroethylene |
