1-200L Jacketed Glass Reactor
Jacketed Glass Reactor
We have 1-200L single layer,double layer,stainless steel,steel reactor can be choose.And can be customized according to your different requirements. If you have any need please contact us:
Email:Laura@xiaofanequip.com
Whatsapp:008615936214136
Wechat:BEIFAN-Laura
Phone:008615936214136
Introduction
Jacketed glass reactor is mainly used for the detection and production of pharmaceutical, chemical, biological products and other industries. The materials in the kettle can be heated, evaporated, separated and recovered. And other operations; External refrigeration cycle equipment can also be used for low temperature reaction in the kettle; If the material is heated and cooled during the reaction process, an external high and low temperature circulation device can be used. And the parts in contact with the material are made of borosilicate glass and polytetrafluoroethylene material with high temperature corrosion resistance, which is especially suitable for the reaction of easily decomposed denatuous biological products and is not easy to react with various materials.
 |  |
How it works
Under the vacuum negative pressure condition, the speed regulating knob is used to stir the stirring rod at a constant speed to make the material fully react in the kettle, and the heating or cooling reaction of the material in the kettle is indirectly heated through the external heating or cooling device of the glass sandwich, and the heating reaction process is heated. The resulting solvent vapor is quickly cooled, distilled, or backflowed through the cooling coils of the glass condenser. After the reaction is complete, the material can be quickly discharged through the inclined discharge valve.
Details

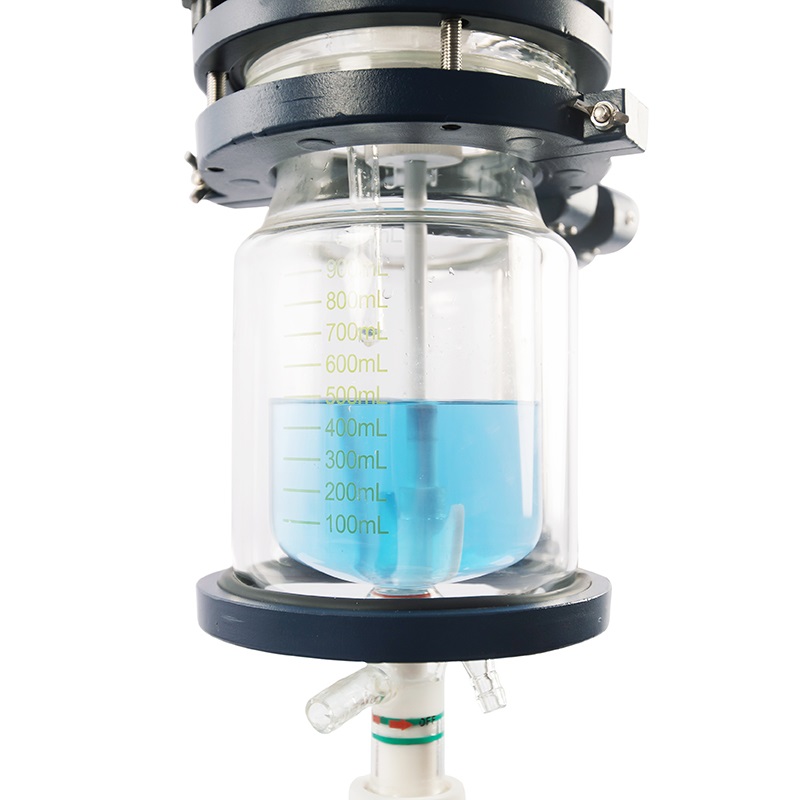

| 1-5L double layer jacketed glass reactor | ||
 |  |  |
 |  |  |

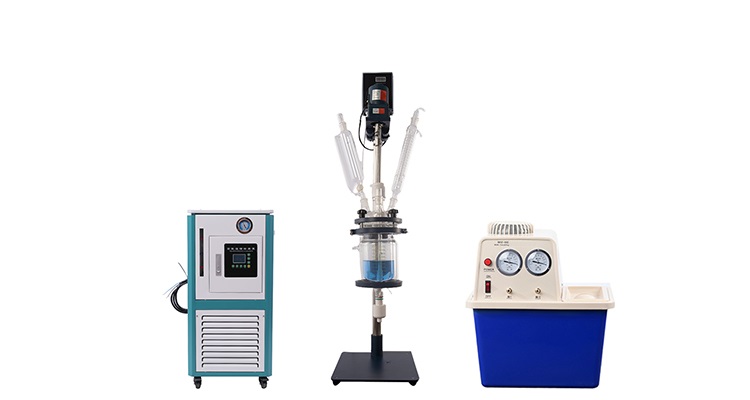

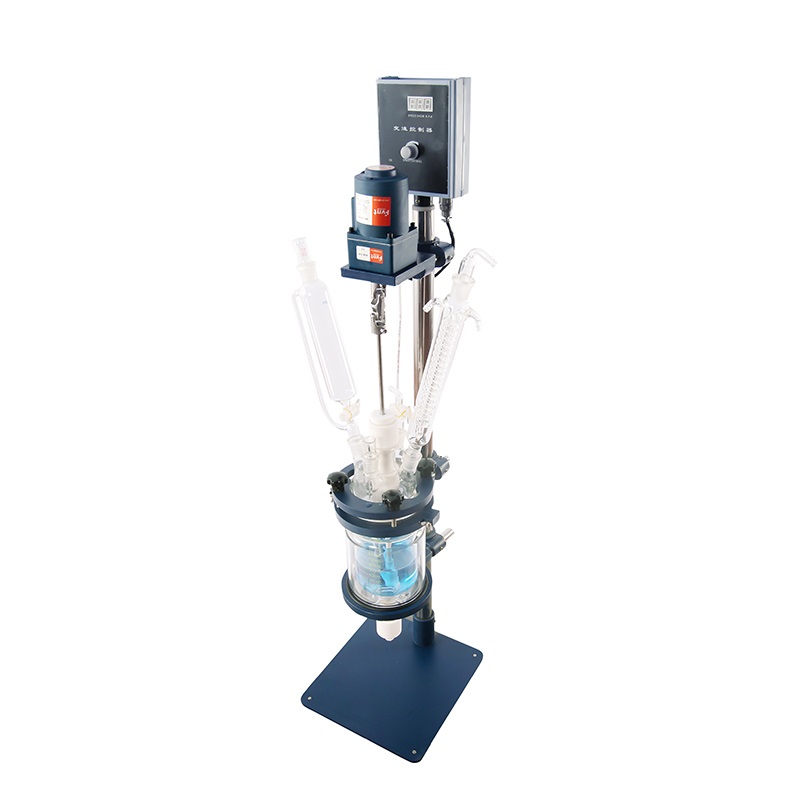

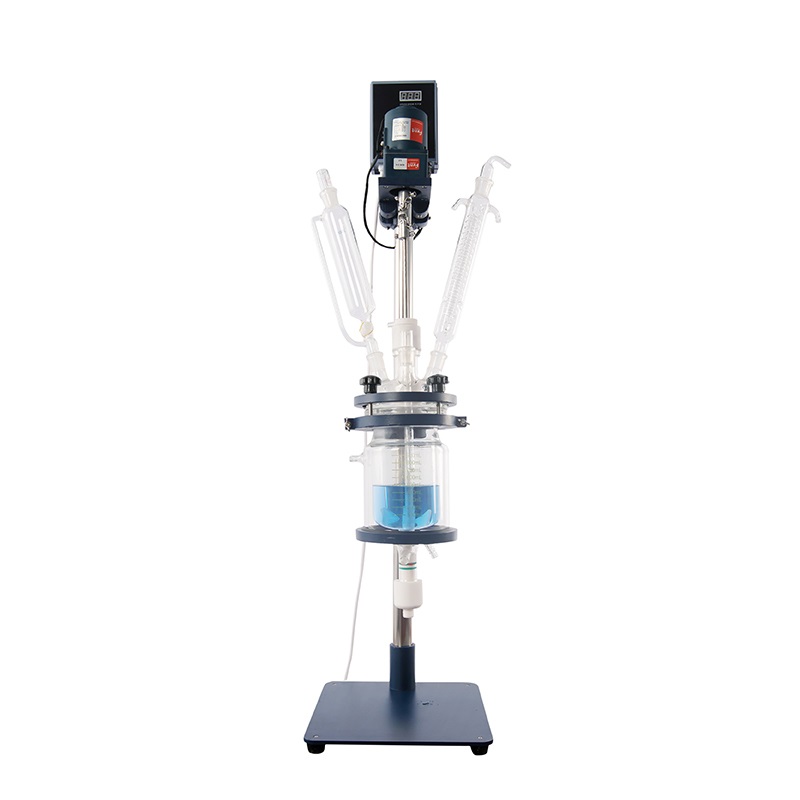

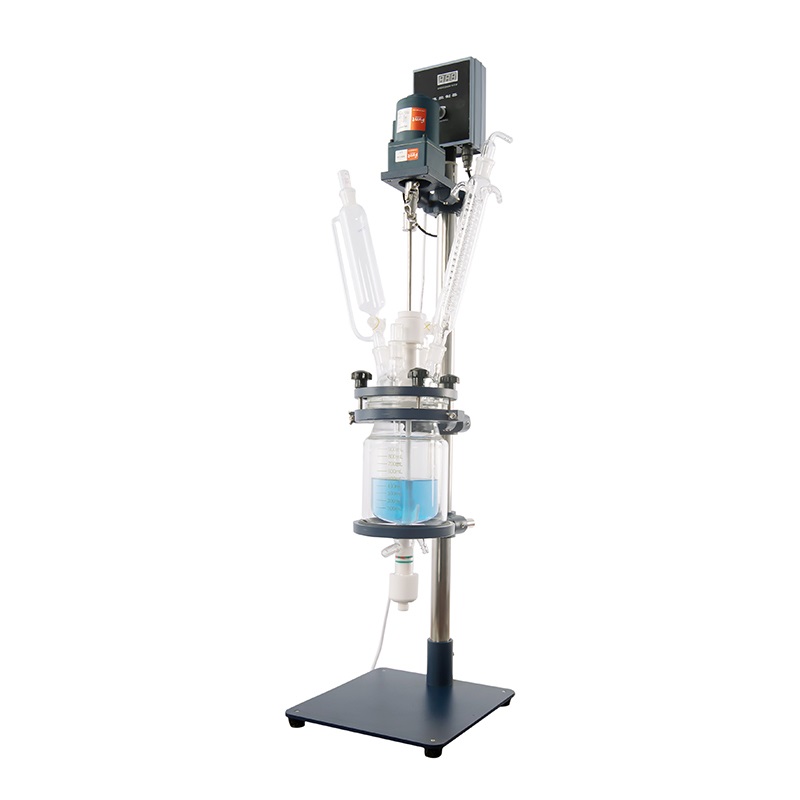

1~5 liters Jacketed Glass Reactor
Model | BF-1LS | BF-2LS | BF-3LS | BF-4LS |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 SUS | 304 SUS | 304 SUS | 304 SUS |
Reaction bottle capacity | 1L | 2L | 3L | 5L |
Jacketed Capacity | 0.4L | 0.5L | 0.6L | 0.8L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |

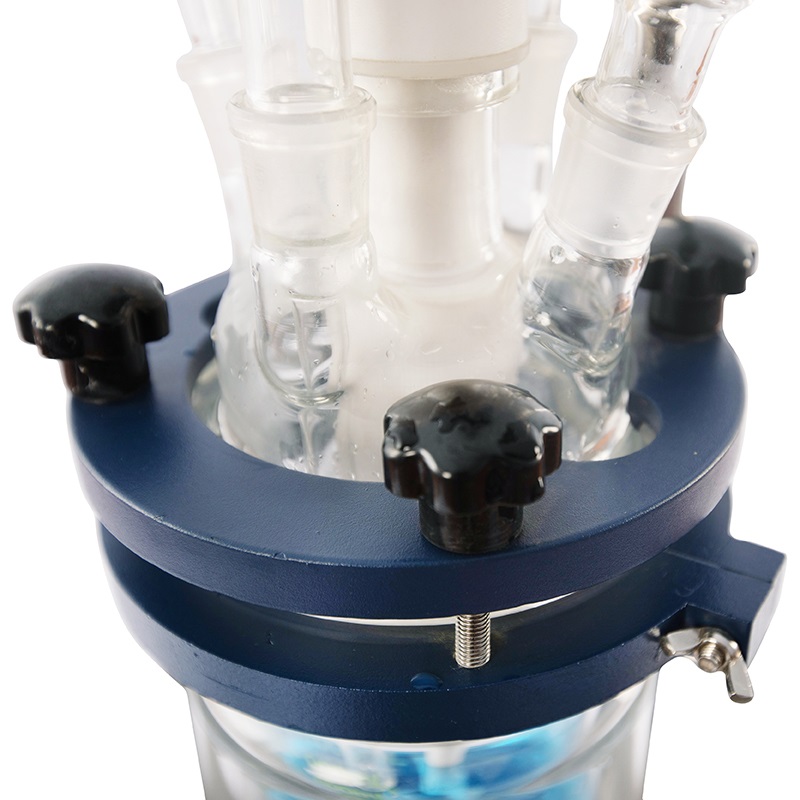

Reaction bottle cover | 5 | 5 | 5 | 5 |
Discharger port distance to ground | 30mm | 30mm | 30mm | 30mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-800rpm | 0-800rpm | 0-800rpm | 0-800rpm |
Stirring diameter | 8mm | 8mm | 8mm | 8mm |
Stirring power | 40W | 40W | 90W | 90W |
Coltage(V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
Dimension(mm) | 350*345*1000 | 350*345*1000 | 350*410*1250 | 350*410*1250 |
Plate size(mm) | 325*345 | 325*345 | 325*410 | 325*410 |
Packign size（mm） | 1200*480*400 | 1200*480*400 | 1380*500*400 | 1380*500*400 |
Packign weight（KG） | 32 | 32 | 38 | 38 |

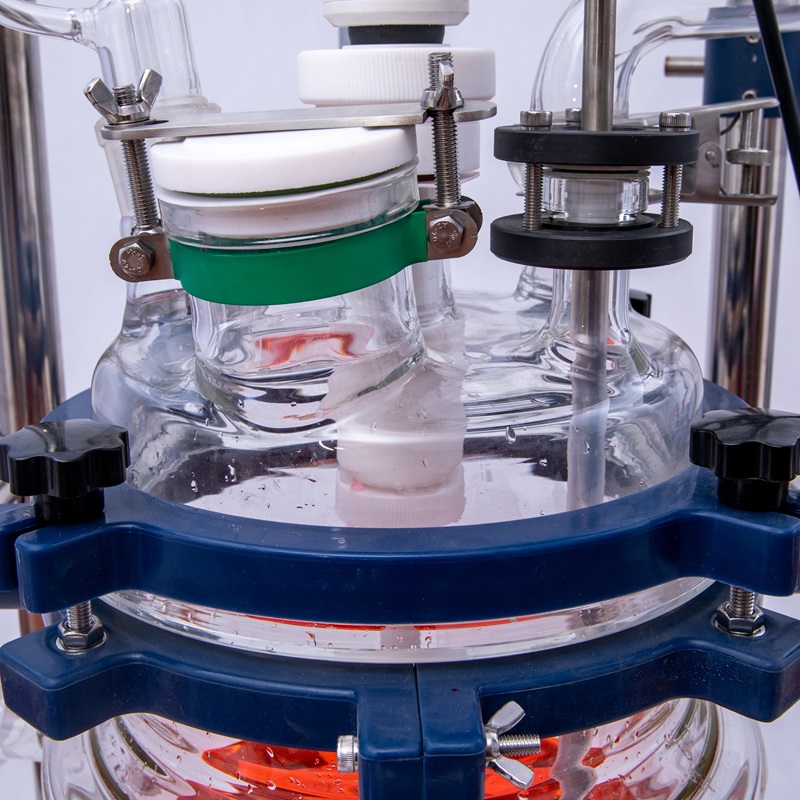

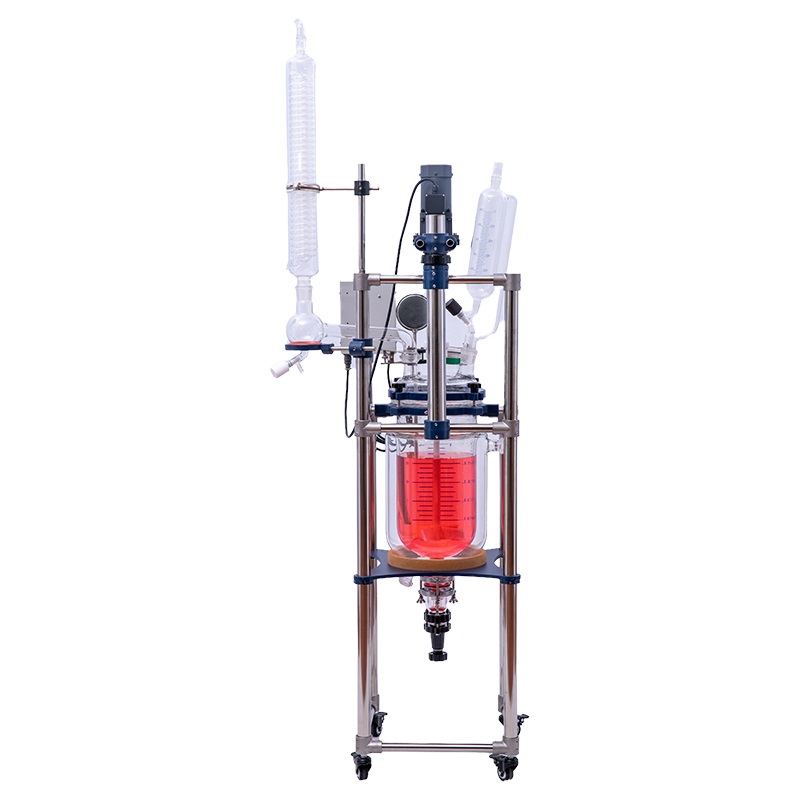

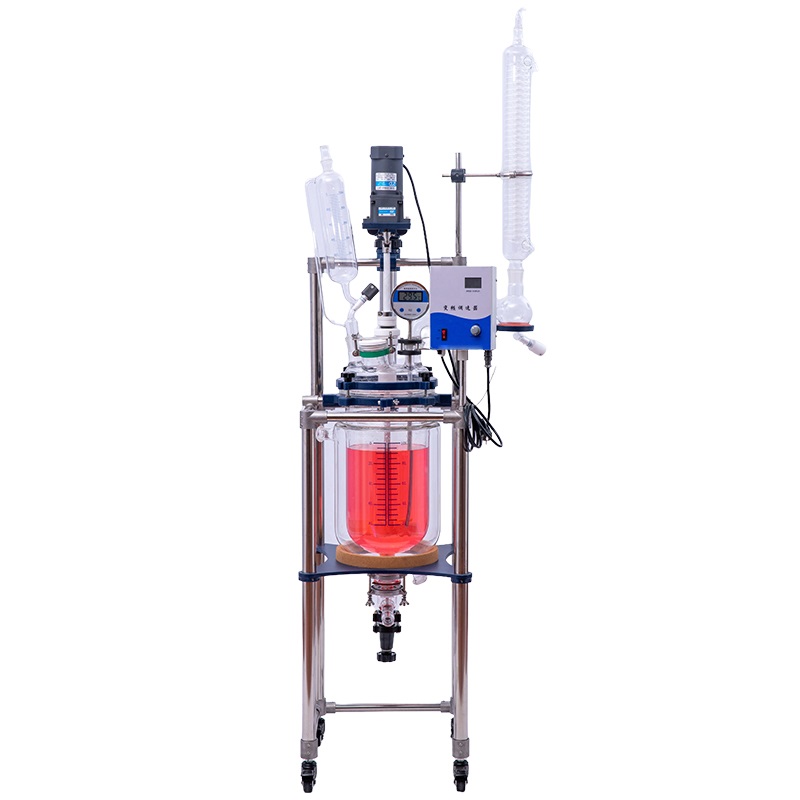

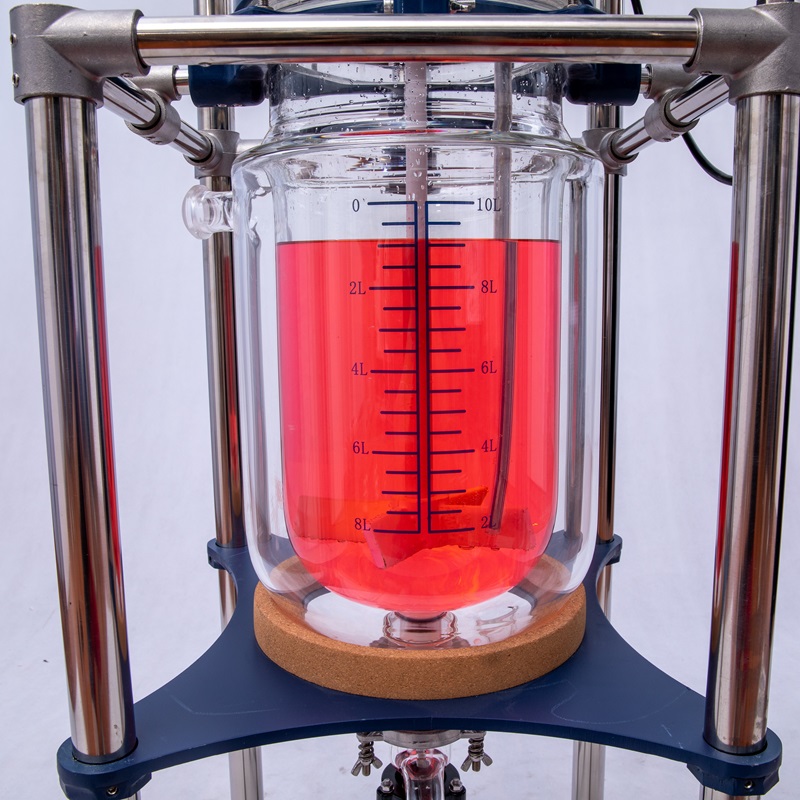

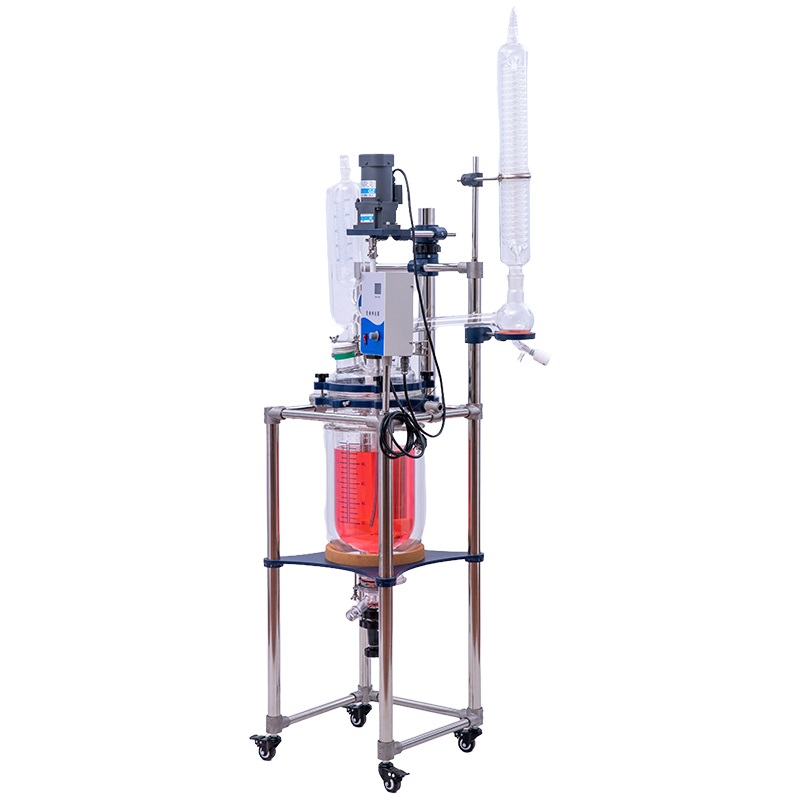

| 10-200L Double Layer Jacketed Glass Ractor | ||
 |  |  |
 |  |  |

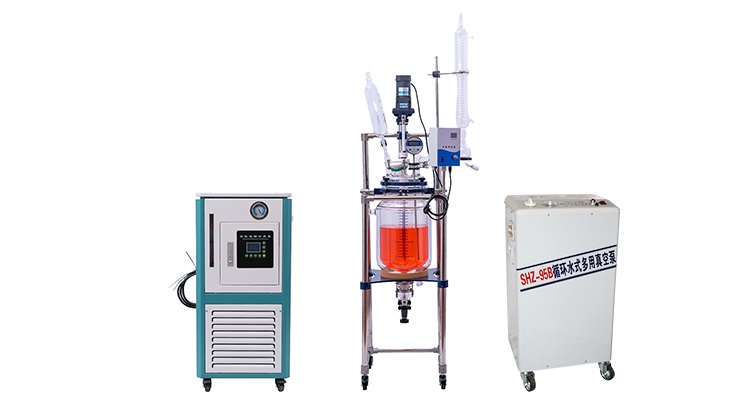

10~30 liters Jacketed Glass Reactor
Model | BF-10LS | BF-20LS | BF-25LS | BF-30LS |
Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
Frame Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Fittings Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Moves | Brake Caster | Brake Caster | Brake Caster | Brake Caster |
Reaction bottle capacity | 10L | 20L | 25L | 30L |
Jacketed Capacity | 6L | 8L | 8L | 10L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | Six port | Six port | Six port | Six port |
Discharger port distance to ground | 450mm | 450mm | 450mm | 450mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm | 0-450rpm |
Stirring diameter | 12mm | 12mm | 12mm | 12mm |
Stirring power | 90W1/3 | 120W1/3 | 120W1/3 | 120W1/3 |
Coltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Dimension(mm) | 520*520*2000 | 560*560*2100 | 560*560*2300 | 760*560*2300 |
Packing size(mm) | 1370*590*800 | 1480*660*810 | 1670*670*860 | 1720*680*850 |
Packign weight（KG） | 68kg | 80kg | 88kg | 88 |
50~100 liters Jacketed Glass Reactor
Model | BF-50LS | BF-80LS | BF-100LS |
Glass Material | GG-17 | GG-17 | GG-17 |
Frame Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Fittings Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
Moves | Brake Caster | Brake Caster | Brake Caster |
Reaction bottle capacity | 50L | 80L | 100L |
Jacketed Capacity | 12L | 16L | 18L |
Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet |
Reaction bottle cover | Six port | Six port | Six port |
Discharger port distance to ground | 450mm | 450mm | 450mm |
Temp. range | -80-250℃ | -80-250℃ | -80-250℃ |
Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Stirring speed | 0-450rpm | 0-450rpm | 0-450rpm |
Stirring diameter | 12mm | 15mm | 15mm |
Stirring power | 120W1/3 | 250W1/3 | 250W1/3 |
Coltage(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Dimension(mm) | 760*560*2450 | 610*610*2400 | 610*610*2400 |
Packing size(mm) | 1720*680*850 | 1900*700*870 | 1900*700*870 |
Packign weight（KG） | 92 | 125 | 125 |
200 liters Jacketed Glass Reactor
Model | BF-200LS |
Glass Material | GG-17 |
Frame Material | 304 Stainless steel |
Fittings Material | 304 Stainless steel |
Moves | Brake Caster |
Reaction bottle capacity | 200L |
Jacketed Capacity | 28L |
Flanged out of the oil circulation port | Low feed high outlet |
Reaction bottle cover | Six port |
Discharger port distance to ground | 450mm |
Temp. range | -80-250℃ |
Vacuum degreee | 0.098Mpa |
Stirring speed | 0-280rpm |
Stirring diameter | 15mm |
Stirring power | 750W1/5 |
Coltage(V/Hz) | 220V/50Hz |
Dimension(mm) | 1300*900*3400 |
Packing size(mm) | 2300*930*1350 |
Packign weight（KG） | 190 |
Speed mode | Frequency control speed |

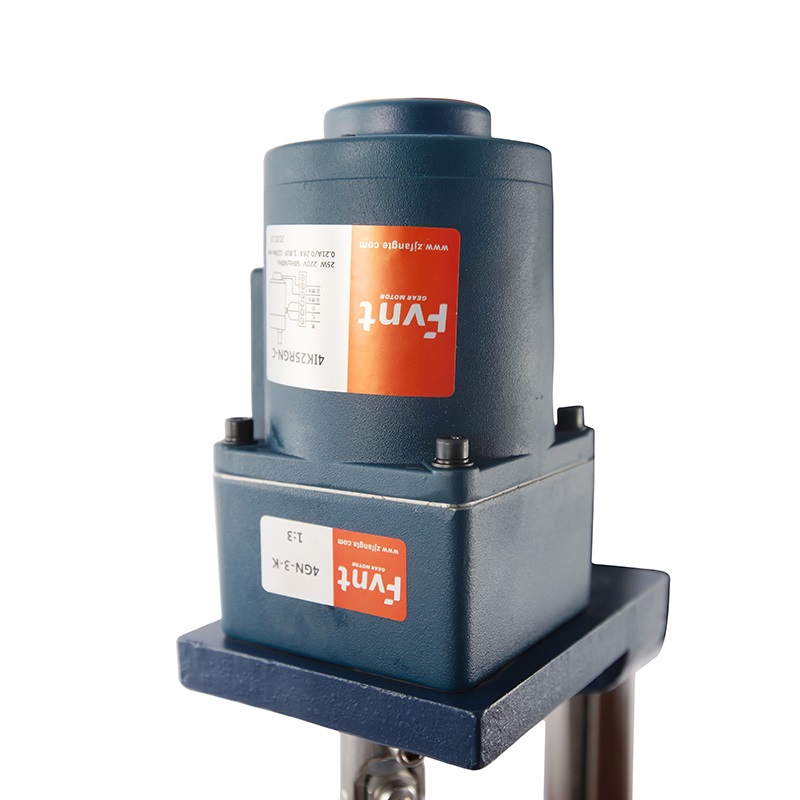

Motor | Whole cooper wire, ratio 3: 1 |
Speed display | Digital display |
Temp. display | PT100 sensor, digital display |
Sealing method | Tetrafluoroethylene seal assembly, ¢ 60 flange stirring port |
Condenser | Vertical 120*800mm，40#port |
Reflux(distillation) apparatus | Reflux elbow with discharger port, milling mouth 50 # |
Dropping device | 2L,Constant pressure funnel,40# port |
Pressure relief device | 34# Pressure reducing valve |
Temperature tube | 24# |
Solid addition | ￠80 Flang with tetrafluoroethylene cover |

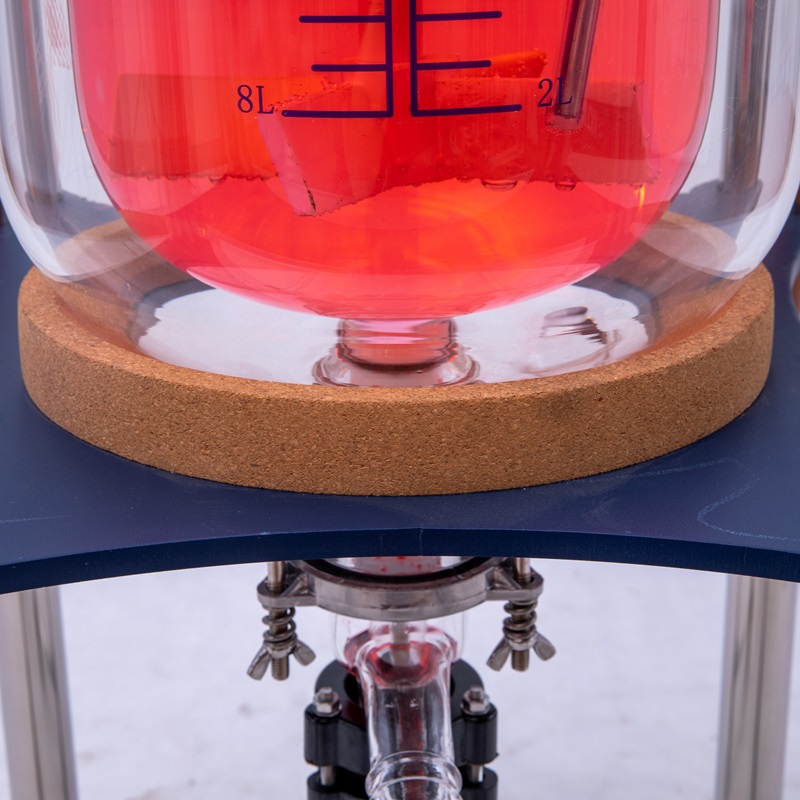

Discharge mode | Oblique discharge with glass discharger value，￠80 Flang |
Vacuum Display | Vacuum Universal joints |
Stirring Connection | Universal joints connection |
Stir bar | Anchor stainless steel rods, outsourcing tetrafluoroethylene |
