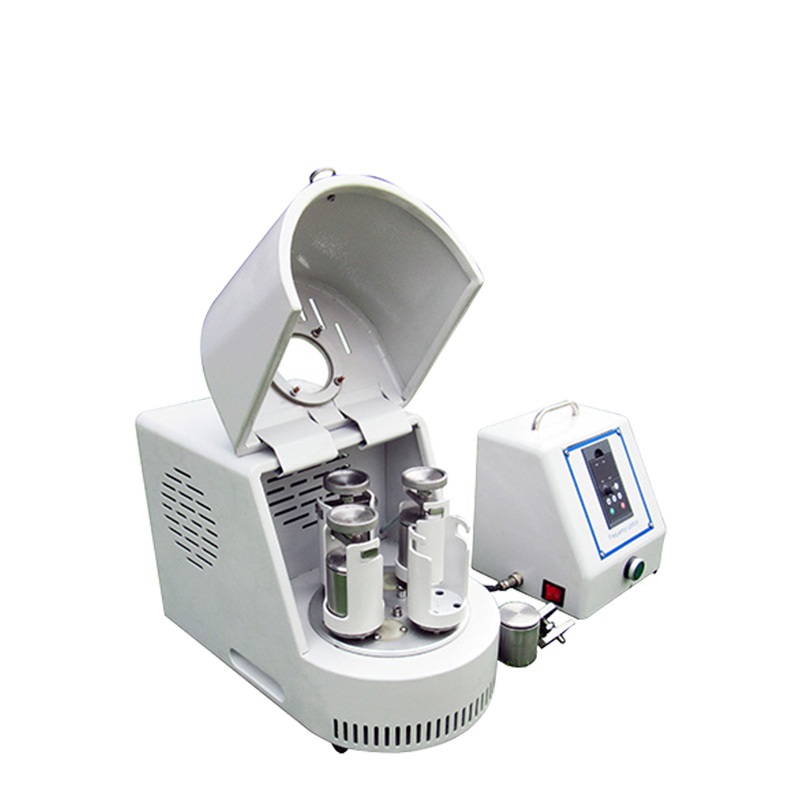

0.2L Miniature lab planetary ball mill
0.2L Miniature lab planetary ball mill
The 0.2L Miniature lab planetary ball mill can be customized according to your different requirements. If you have any need please contact us:
Email:shuke@xiaofanequip.com
Whatsapp:008615936214136
Wechat:15936214136
Phone:008615936214136
Description
The abrasive and the sample are rolled at high speed in the grinding jar to produce strong shearing, impacting and rolling on the material, so as to achieve the purpose of crushing, grinding, dispersing and emulsifying the material. There are multiple ball mills on the same turntable. When the turntable rotates, the ball mills revolve around the turntable axis and rotate around its own axis at the same time, making planetary motion. The grinding balls in the jar collide with each other in high-speed motion, grinding and mixing the sample.
 |  |  |
Application
Features
1. Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Specification
Drive Mode | Gear drive or belt drive |
Operation Mode | Two or four grinding jars can be used for each grinding |
Max Load Capacity | Less than 1/3 of each jar volume |
Feed Size of Materials | Soft and crispy materials ≤ 10mm |
Output Granule | Smallest granularity can be achieved to 0.1μm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Mill Jars Available | 304 Stainless steel, 316l stainless steel, Zirconia, Nylon, PU, |
Model No. | Voltage (V) | Power (W) | Revolution Speed (rpm) | Rotate Speed (rpm) | Dimensions (mm) | Net Weight (KGS) |
XQM-0.2S | 110V or 220V | 90 | 60-580 | 120-1160 | 250*425*280 | 24 |
XQM-0.2 | 110 or 220V | 90 | 60-580 | 120-1160 | 220*410*270 | 24 |
Remarks: 1. Optional voltage: 110/50Hz, 110V/60Hz, 220V/50Hz;

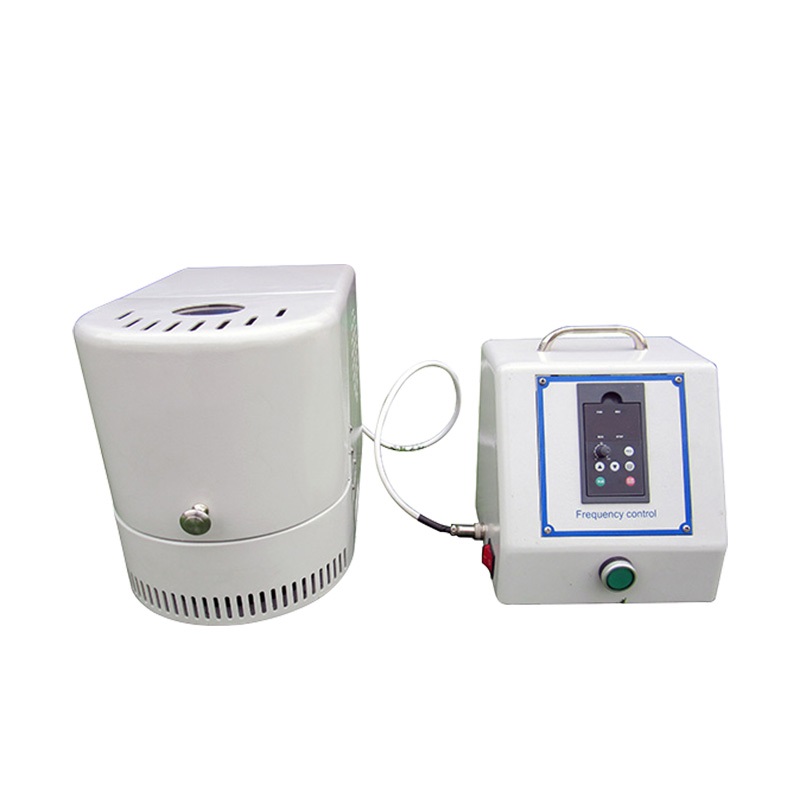

2.XQM-0.2S has to be equipped with an electric control box;
3.XQM-0.2 has no electric box.
We provide all kinds of mill pots in any matched size, which are made from following materials of agate, Alumina corundum ceramics, zirconia ceramics, silicon nitride ceramics, carborundum ceramics, stainless steel, high wear resistant steel, manganese steel, nylon, PU, cemented carbide, crystal glass, and etc.
