25L Jacketed Glass Reactor
30L Jacketed Glass Reactor
We have 1-200L single layer,double layer,stainless steel,steel reactor can be choose.And can be customized according to your different requirements. If you have any need please contact us:
Email:Laura@xiaofanequip.com
Whatsapp:008615936214136
Wechat:BEIFAN-Laura
Phone:008615936214136
Product Description
High quality borosilicate glass 3.3 has good chemical-physical attribute.
Low speed booster motor; High torque; no spark; frequency control, smooth operation.
PTFE rotary seal assembly; Patented product; High vacuum degree and long useful life.
PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.
Selection of our company’s heating and cooling circulating device, we match standard connector and the suitable connection pipe.

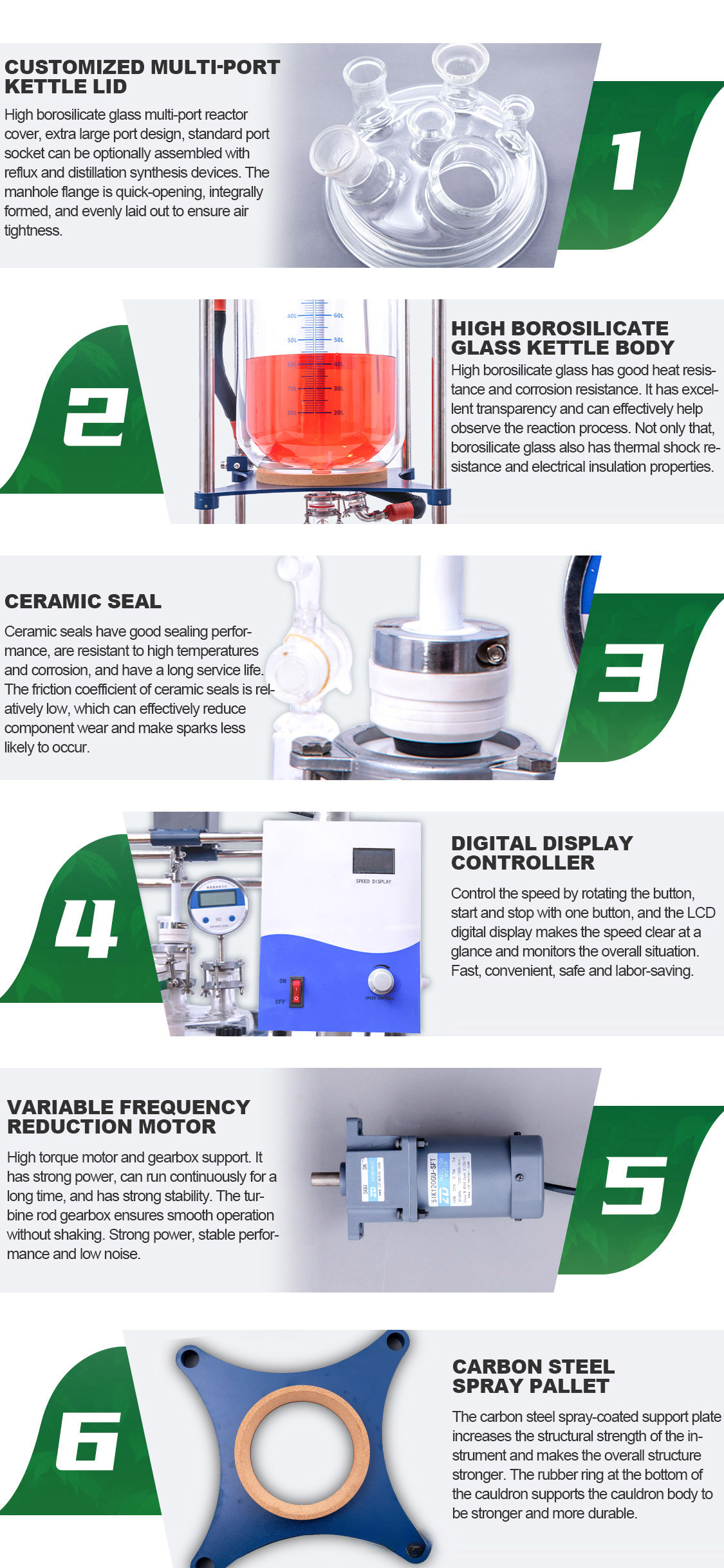

Product Display
Features
1.Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects the circulation fluid temperature and provides a better control.
2.Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
3.All glassware is hand-made from borosilicate 3.3 glass that is heat/cold/corrosion-resistant.
4.Adjustable stirring rate provides great torque or high speed.
5.Patented PTFE stirring rod bearing for reliable and quiet operation.
6.Wide range of temperature operations, from -60°C to 200°C.
Specification
| Model | BF-20LS |
| Glass Material | GG-17 |
| Frame Material | 304 Stainless steel |
| Fittings Material | 304 Stainless steel |
| Moves | Brake Caster |
| Reaction bottle capacity | 20L |
| Jacketed Capacity | 8L |
| Flanged out of the oil circulation port | Low feed high outlet |
| Reaction bottle cover | Six port |
| Discharger port distance to ground | 450mm |
| Temp. range | -80-250℃ |
| Vacuum degreee | 0.098Mpa |
| Stirring speed | 0-450rpm |
| Stirring diameter | 12mm |
| Stirring power | 120W1/3 |
| Coltage(V/Hz) | 220V/50Hz |
| Dimension(mm) | 560*560*2100 |
| Packing size(mm) | 1480*660*810 |
| Packign weight（KG） | 80kg |
| Speed mode | electronic stepless |
| Motor | Whole cooper wire, ratio 3: 1 |
| Speed display | Digital display |
| Temp. display | PT100 sensor, digital display |
| Sealing method | Tetrafluoroethylene seal assembly, ¢ 50 flange stirring port |
| Condenser | Vertical 120*640mm，40#port |
| Reflux(distillation) apparatus | Reflux elbow with discharger port, milling mouth 50 # |
| Dropping device | 2L,Constant pressure funnel,40# port |
| Pressure relief device | 34# Pressure reducing valve |
| Temperature tube | 24# |
| Solid addition | ￠80 Flang with tetrafluoroethylene cover |
| Discharge mode | Oblique discharge with glass discharger value，￠80 Flang |
| Vacuum Display | Vacuum Universal joints |
| Stirring Connection | Universal joints connection |
| Stir bar | Anchor stainless steel rods, outsourcing tetrafluoroethylene |
