Dual Planetary Ball Mill Ginger powder grinding machine

The Small planetary ball mill for low temperature can be customized according to your different requirements. If you have any need please contact us:

Email:shuke@xiaofanequip.com

Whatsapp:008615936214136

Wechat:15936214136

Phone:008615936214136

Description

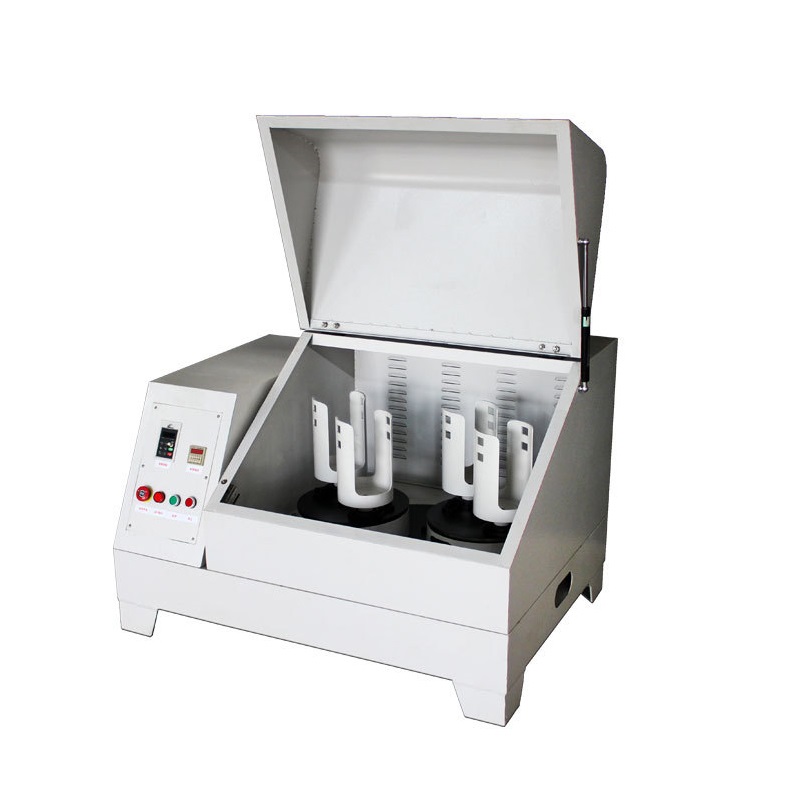

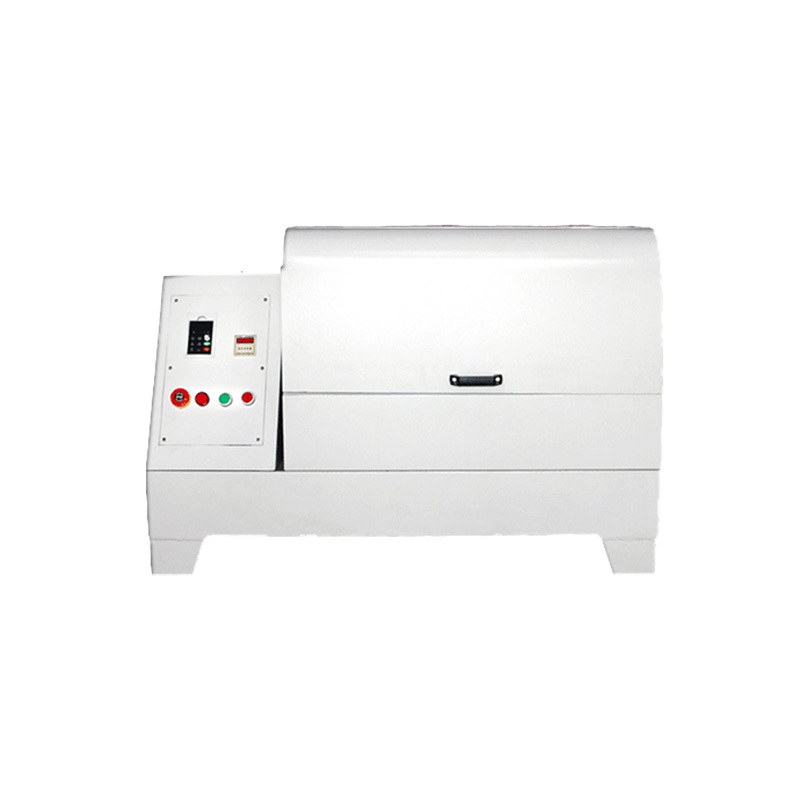

Double planetary structure of dual planetary ball mill realizes movement of small disk driven by one large planetary disk. Compared with common planetary ball mill in same size, revolution radius and rotation speed of mill jars have been enlarged greatly and centrifugal force of grinding balls is multiplied. Collision, shearing and frictions between grinding balls are becoming increased significantly. As result, grinding effect and efficiency have been improved greatly. Some materials can be ground into nano meter scale by dual planetary ball mill. Class. Dual planetary ball mill is a kind of typical high efficiency and high energy ball mill.

Application

Features

1. The mill pot makes two planetary movement, It enjoys high efficiency and small particle size under the high frequency percussion, linear collision force, friction force.( First in China)

2. Four different samples can be got at one time. It is convenient for the technologist to do the research and develop the new material.

3. Feed Granularity of Materials: Soil material ≤10mm, other materials ≤3mm.

4. Wet or dry grinding method. Minimum Granularity of powder amounts to 0.06 μm.

5. Frequency controlled, you can set the speed as per experiment effect.

6. Large turn disc revolution: 50-400rpm.

    Small turn disc revolution: 100-800rpm.

    Large planetary axis rotation: 100-800rpm.

    Mill pot rotation: 200-1600rpm.

7. The planetary ball mill has timing power off, self-timing forward and inversion function. It can raise the efficiency by choosing one-way, alternately, continuously, time-setting operation.

8. Motor power: 0.4L, 2L, 4L: 0.75KW, 220V, 50Hz; 16L, 20L: 5.5KW, 380V, 50Hz.

9. Our planetary ball mill is functional which has low bary center, stable performance, compact structure, easy operation, reliable safety, low noise, and low wastage.
