20L Single Layer Glass Reactor
20L Single Layer Glass Reactor
We have 1-200L single layer,double layer,stainless steel,steel reactor can be choose.And can be customized according to your different requirements. If you have any need please contact us:
Email:Laura@xiaofanequip.com
Whatsapp:008615936214136
Wechat:BEIFAN-Laura
Phone:008615936214136
Description
The single-layer glass reactor can provide high-temperature reactions (the highest temperature can reach 300℃); it can also be evacuated to perform negative pressure reactions. The single-layer glass reactor can perform various solvent synthesis reactions under constant temperature conditions. The instrument reaction part is a controllable fully sealed structure. It can continuously inhale various liquids and gases using negative pressure, and can also perform reflux or distillation at different temperatures.
Working principle
The reactor body is directly heated by the silver film heating plate, so that the materials in the reactor are heated at a constant temperature, and stirring can be provided. The materials react in the reactor, and the evaporation and reflux of the reaction solution can be controlled. After the reaction is completed, the lid and motor part of the single-layer glass reactor are mechanically lifted (electric lifting is optional), and the reactor body can rotate 360 degrees to facilitate the dumping and discharging of materials, which is extremely convenient to operate. It is an ideal equipment for modern chemical small and medium sample experiments, biopharmaceuticals and new material synthesis.
Application
Details Image
Specification
| Model | BF-20LD |
| Glass material | GG-17 |
| pot shell material | Spraying antiseptic shell 640*540*890mm |
| Inner port material | stainless steel 450*250mm |
| Moving mode | Brake type universal corner wheel |
| Volume | Ball type 20L |
| Port No. of reactor cover | 7 |
| Distance between discharge to floor | 450mm |
| Temperature range | .-80 to 250degree |
| Vacuum | 0.098Mpa |
| Stirring speed | 0-450rpm |
| Stir rod diameter | 12mm |
| Stir power | 90W1/3 |
| Heating power | 5KW |
| Voltage | 220V 50HZ |
| Overall size (mm*mm*mm) | 700*540*1950 |
| Package size (mm*mm*mm) | 1220*620*790 0.6CBM |
| Gross weight（KG） | 80 |
| Speed display mode | Electronic stepless speed regulation |
| Motor | Low speed booster motor, speed ratio 3: 1 |
| Speed display mode | LCD digital display |
| Temperature display | digital display |
| Seal | PTFE seal, ￠80 flange stir port |
| Condenser | Vertical high efficiency double reflux condenser 100*600mm，Φ60 flange port |
| Reflux (distillation) device | Return bend with feeding switch, 50# ball mill port |
| Drop adding device | 1LConstant pressure funnel, 34 standard |
| Pressure release device | standard 34# pressure release valve |
| Temperature tube | standard 24# |
| Solid adding (cleaning) port | ￠120 flange port with PTFE cover |
| Discharge | glass discharge valve, ￠80 flange port |
| Vacuum display mode | Vacuum gauge |
| Mixing connection | universal joint link |
| Stir rod | Anchor type, Stainless steel rod with PTFE |

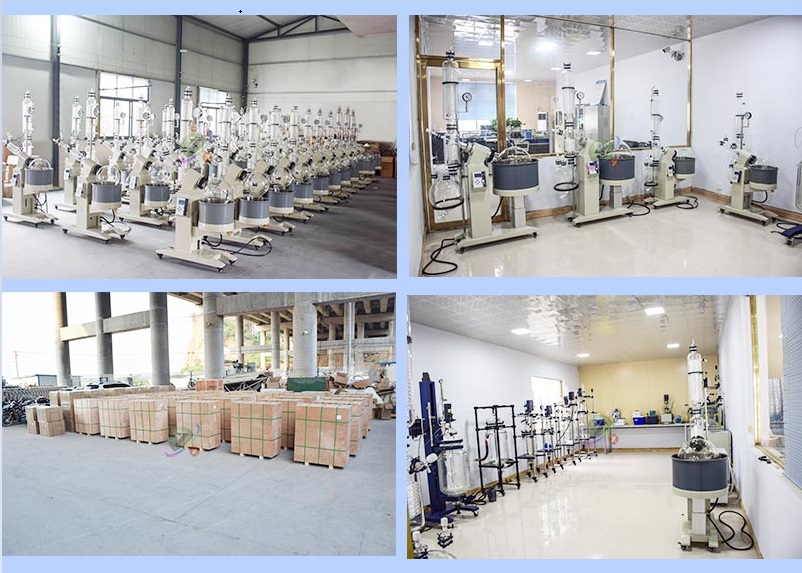

Factory
